AGM RattlerV2 19-256 Thermal Scope

AGM RattlerV2 19-256 Thermal Scope

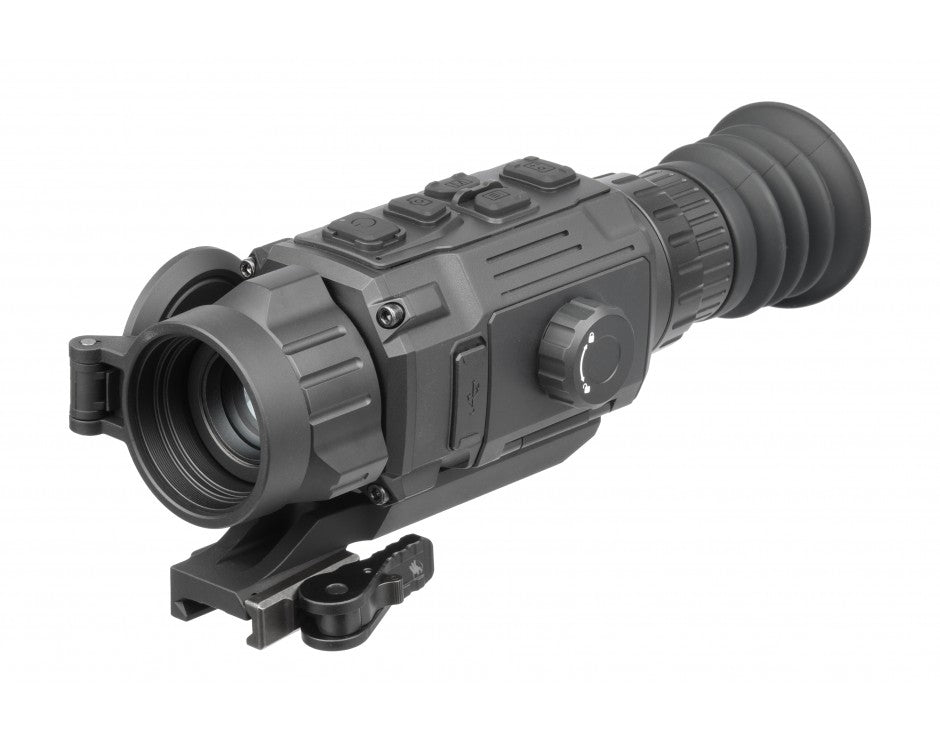

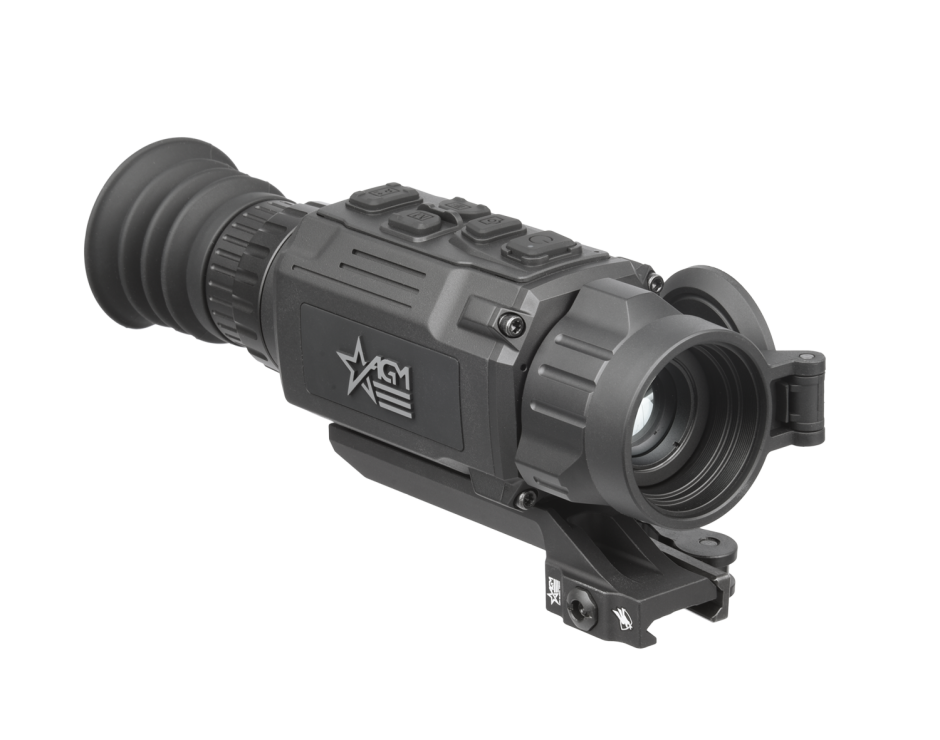

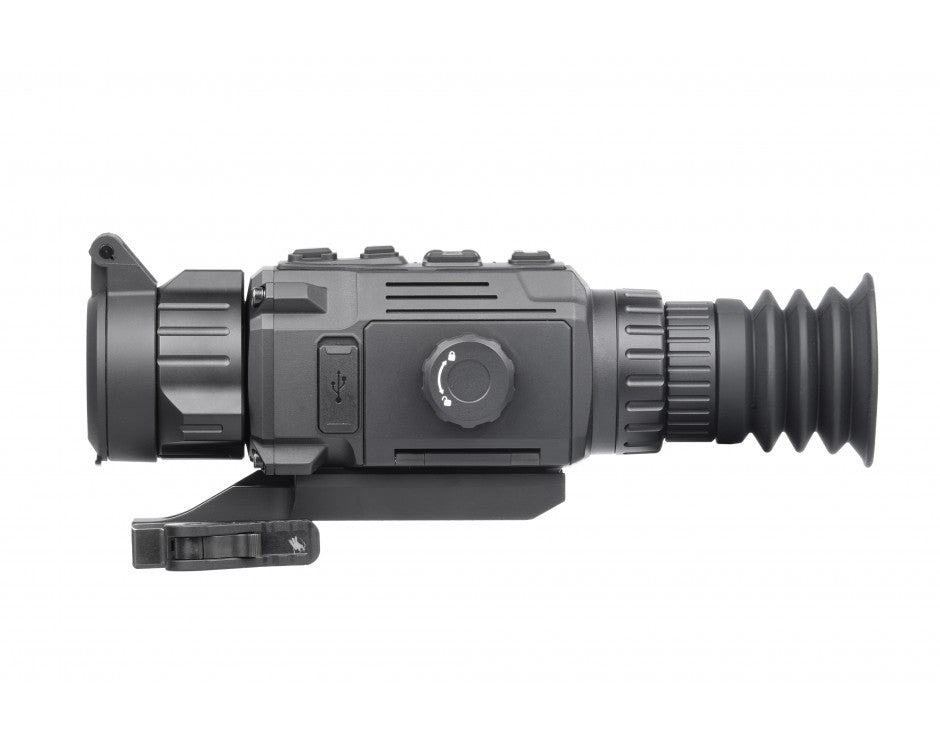

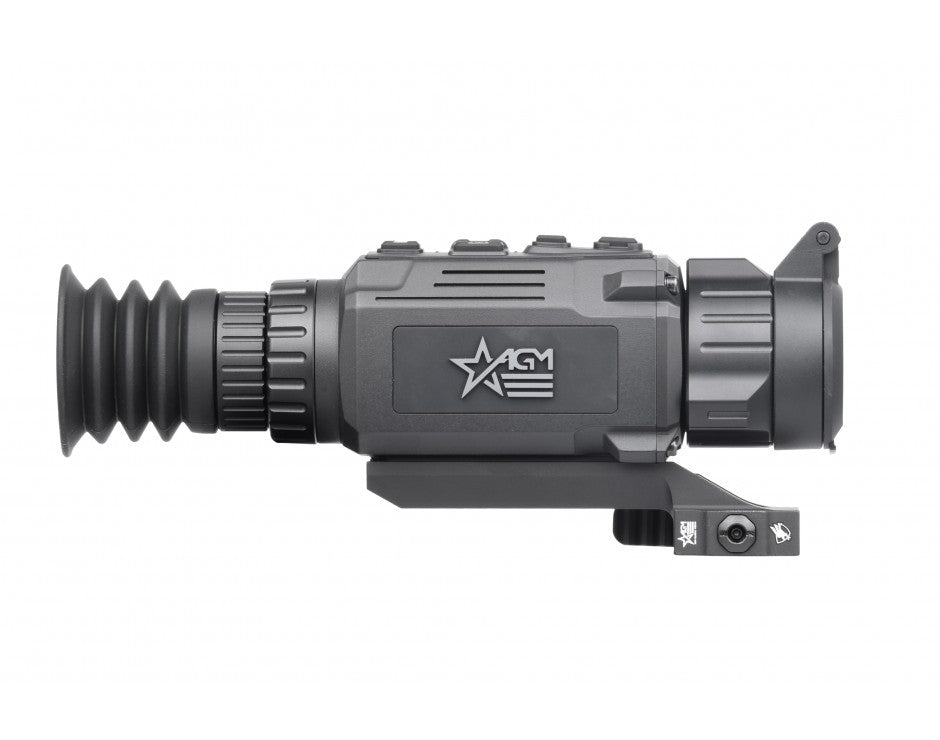

The AGM RattlerV2 19-256 is a compact, budget-friendly thermal riflescope designed for close-range night hunting, new thermal users, and hunters looking for a reliable backup or buddy scope. Built around a smooth 50 Hz refresh rate and a 12-micron 256×192 thermal sensor, the RattlerV2 delivers clear heat detection with minimal lag while scanning. Its wide 9.3° field of view and 2.5x base magnification make it ideal for fast target acquisition in tight cover, feeders, and wooded terrain. With major upgrades like extended 11.5-hour battery life, Shot Activated Recording, Wi-Fi connectivity, and a rugged ADM QD mount, the RattlerV2 19-256 offers impressive performance and usability at an entry-level price point—without sacrificing the reliability AGM is known for.

AGM RattlerV2 19-256 — Features & Specifications

Thermal Sensor & Imaging

Feature	Specification
Detector Type	12µm VOx Uncooled Focal Plane Array
Sensor Resolution	256 × 192
Refresh Rate	50 Hz
Detection Range	Up to 950 yards
Scene Modes	Cold, Warm
Color Palettes	Black Hot, White Hot, Red Hot, Fusion

---

Optics & Magnification

Feature	Specification
Objective Lens	19 mm Germanium, F/1.0
Base Magnification	2.5×
Digital Zoom	2.5× – 20×
Field of View	9.3° × 6.9° (49 ft @ 100 yds)
Eye Relief	45 mm
Focus System	Enhanced short-throw focus ring

---

Display

Feature	Specification
Display Type	OLED
Display Size	0.39 inch
Display Resolution	1024 × 768

---

Reticle & Zeroing

Feature	Specification
Reticles	10 types
Reticle Colors	4 colors
Zeroing Profiles	Multiple profiles for different rifles/calibers
Picture-in-Picture (PIP)	Yes

---

Recording & Storage

Feature	Specification
Video Recording	Yes
Audio Recording	Yes
Shot Activated Recording (SAR)	Yes
Snapshot Capture	Yes
Internal Storage	16 GB EMMC
Defective Pixel Correction	Yes

---

Connectivity

Feature	Specification
Wi-Fi Hotspot	Yes
App Compatibility	AGM mobile app
Menu System	Simplified layout

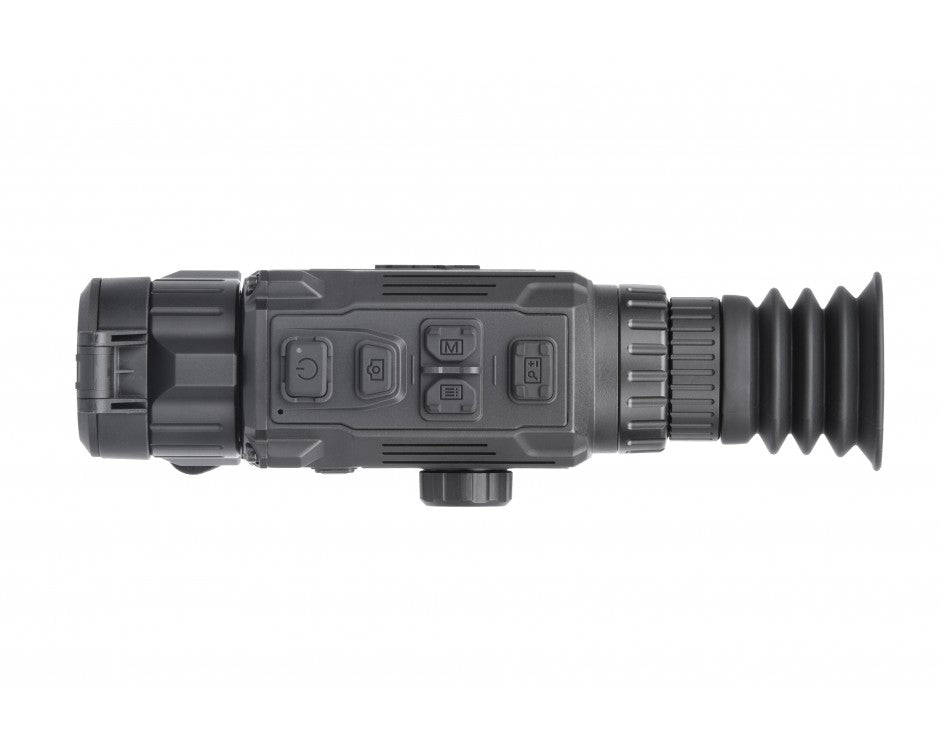

Controls	Raised 5-button layout (glove-friendly)

---

Power System

Feature	Specification
Battery Type	Rechargeable NE-4400 Li-Ion
Batteries Included	2
Battery Life	Up to 11.5 hours
External Power	USB-C (5V, 2A)
Standby Mode	Yes

---

Durability & Environmental

Feature	Specification
Housing	Upgraded rugged scope body
Waterproof Rating	IP67
Operating Temperature	−30°C to +55°C
Weight	0.48 kg (1.06 lb)

---

Mounting & Package Contents

Feature	Specification
Mount	Custom ADM QD Mount
Package Includes	Scope, ADM mount, (2) batteries, charger, USB cable, lens cloth, manual, carrying case
Warranty	5-Year AGM Warranty
