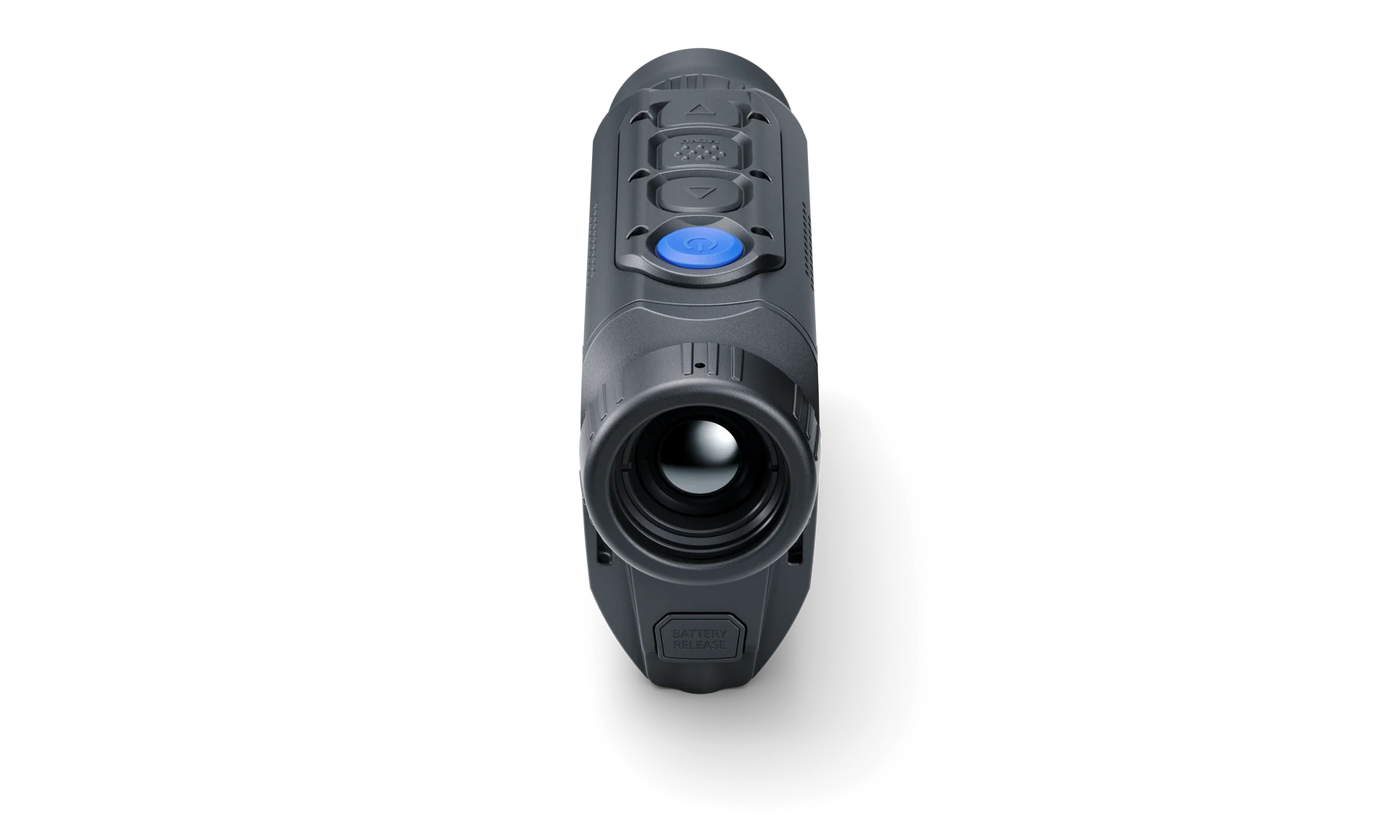

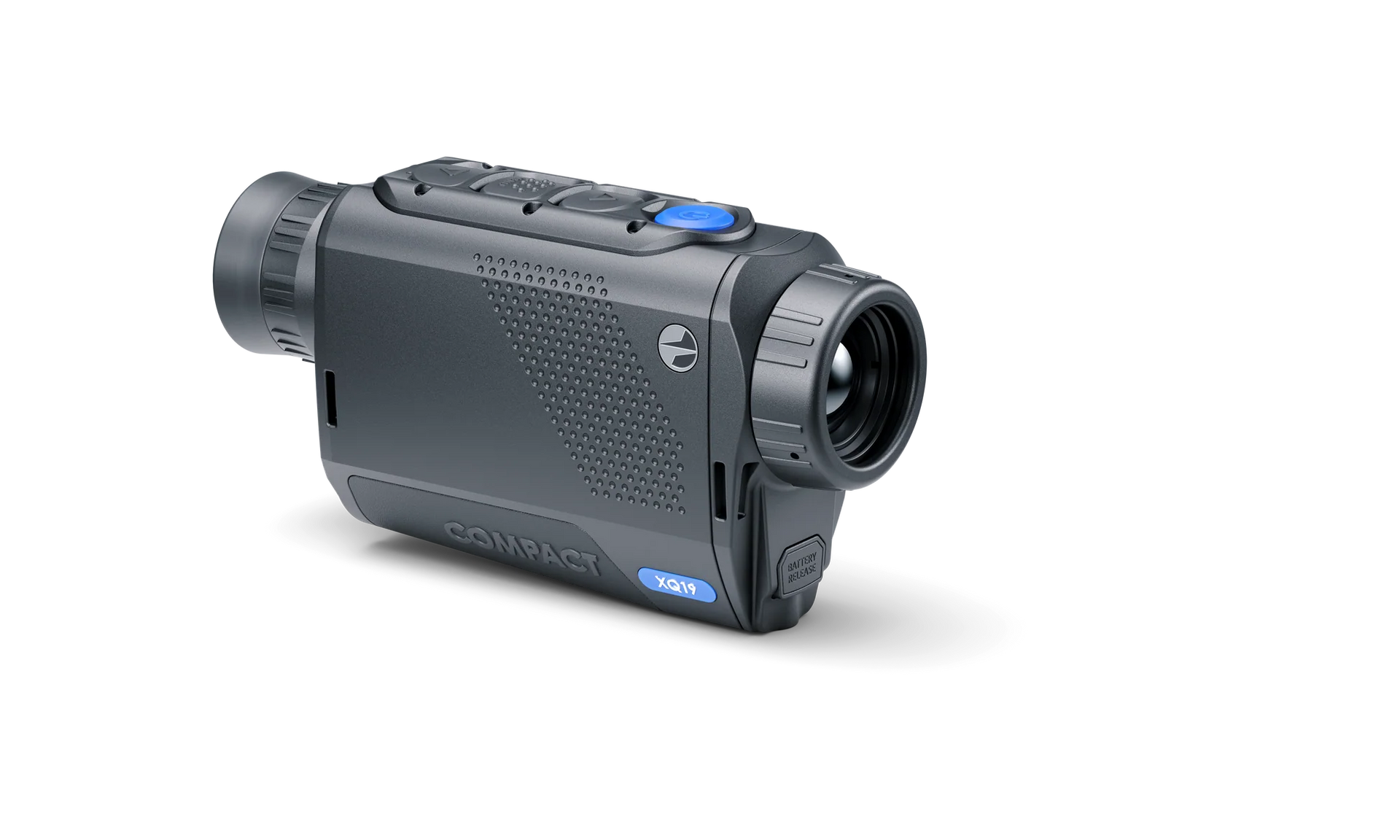

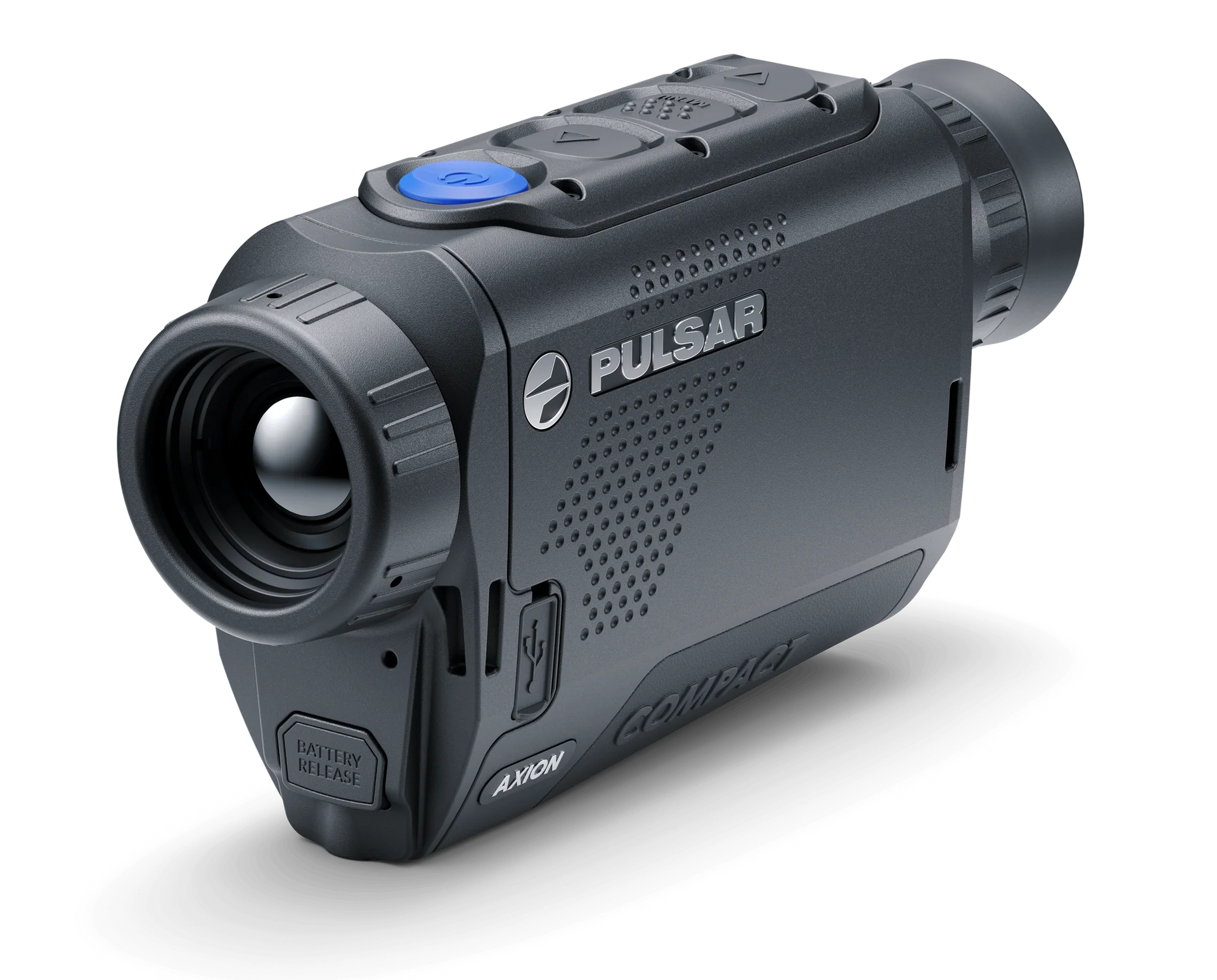

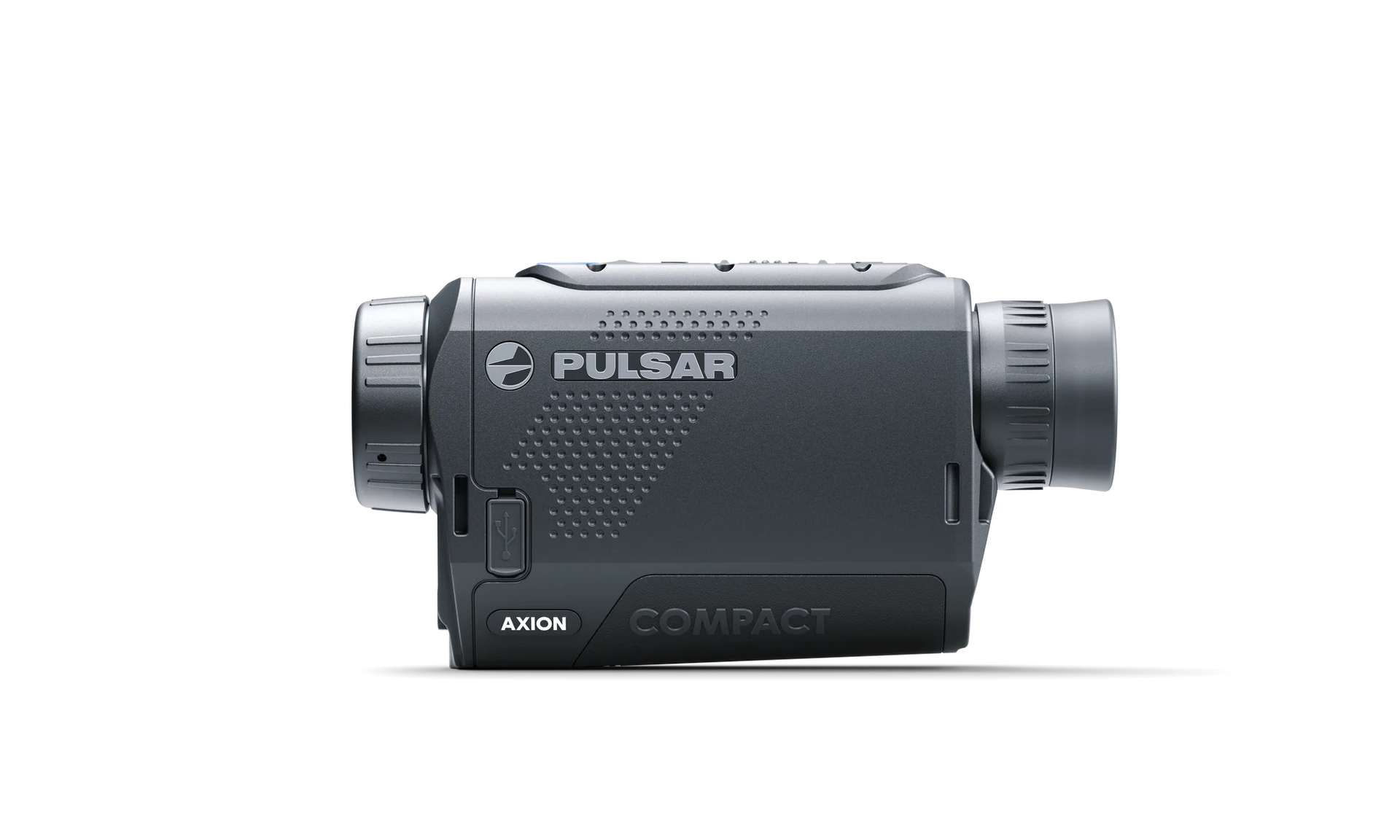

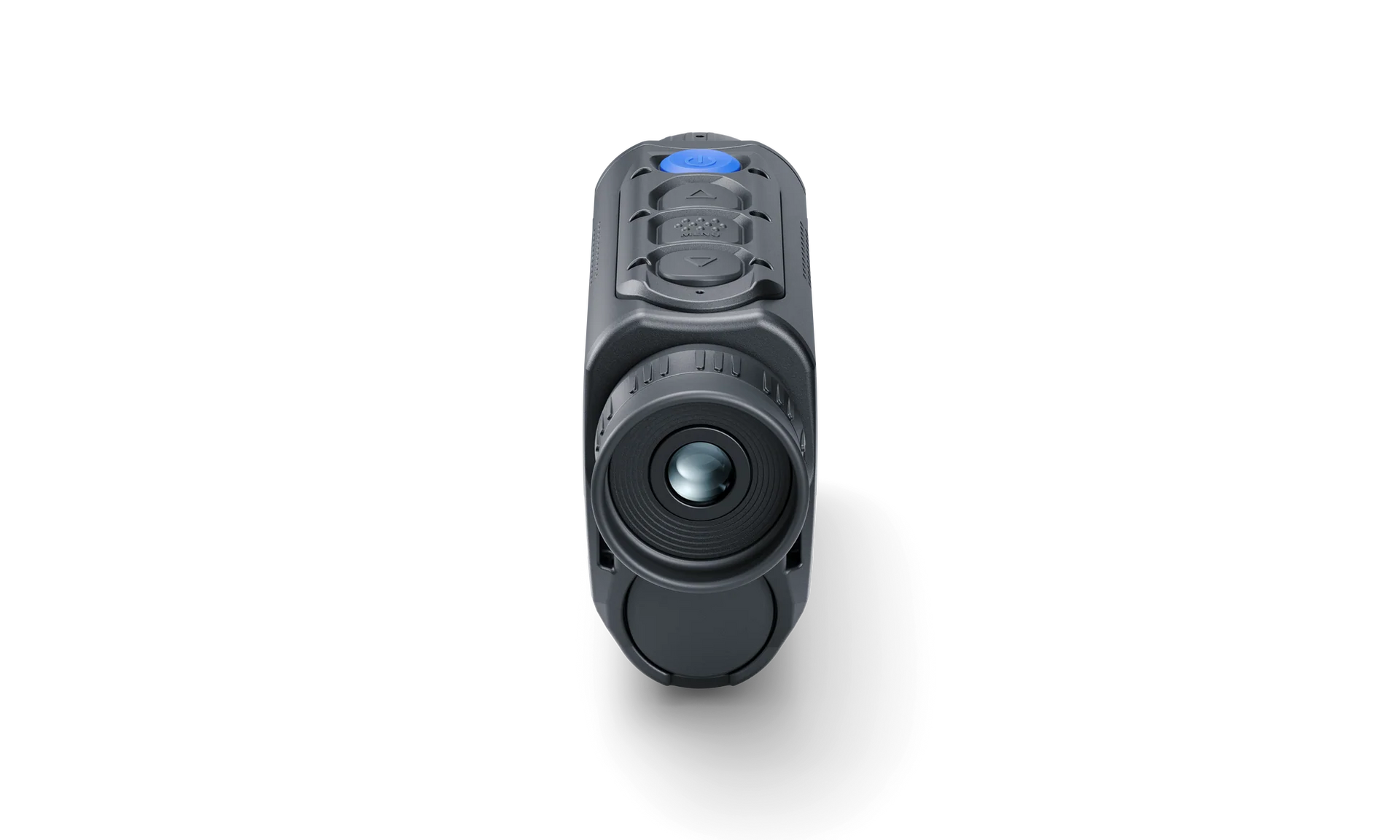

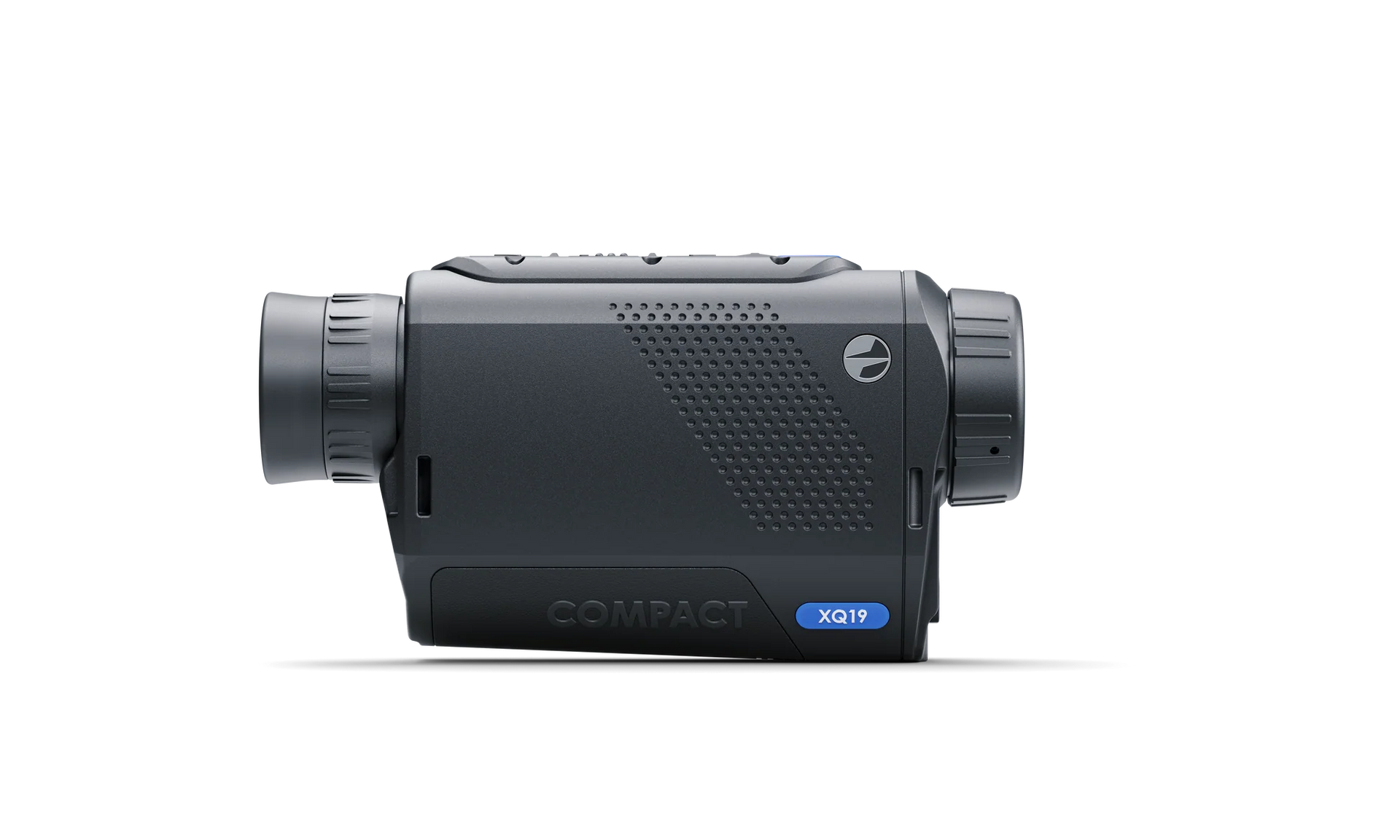

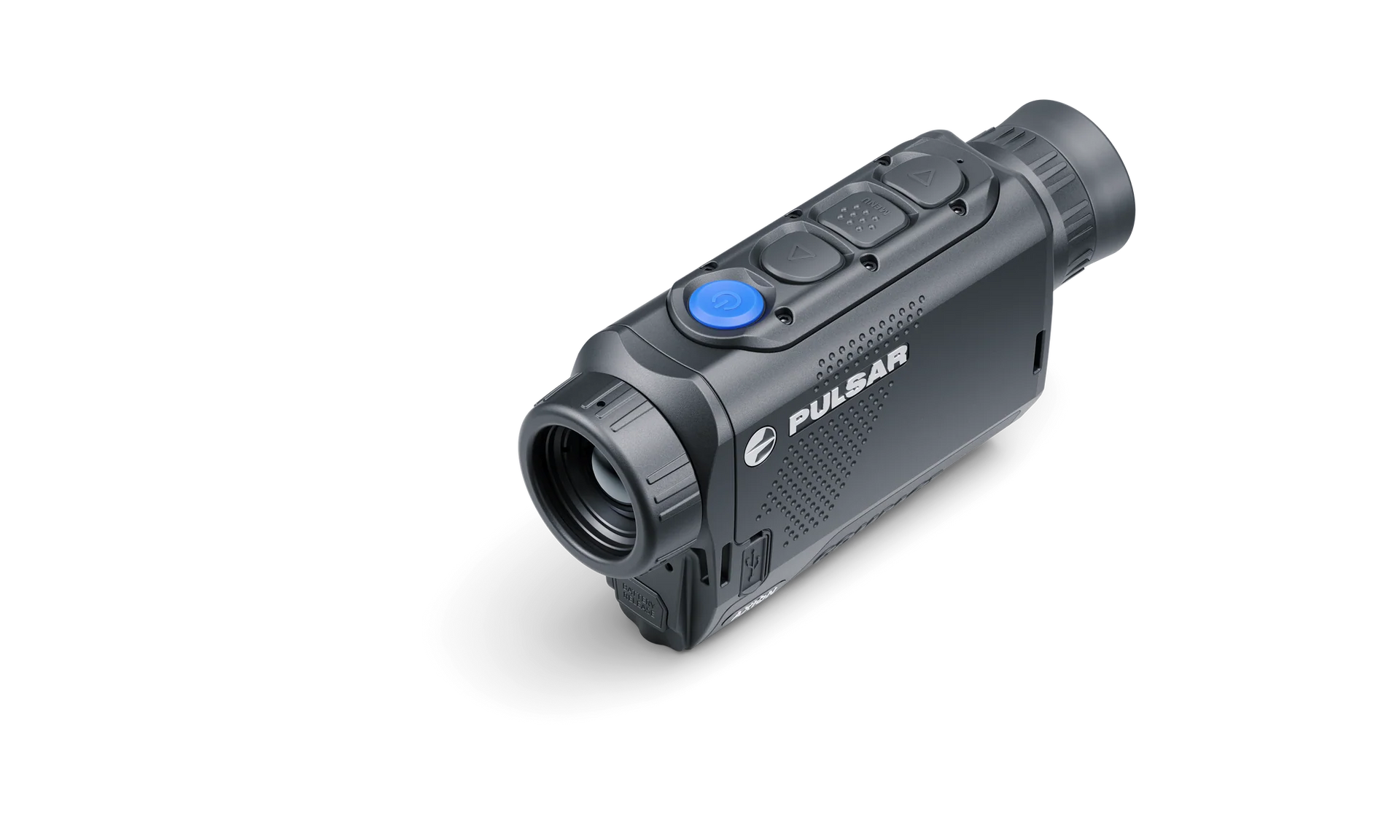

Pulsar Axion XQ19 Thermal Monocular
The Pulsar Axion XQ19 is a pocket-sized thermal monocular engineered for fast, efficient scanning and reliable detection in the field. Featuring a highly sensitive European-made 384×288 thermal sensor with sNETD <18 mK and a wide 19.5° field of view, the Axion XQ19 excels at locating heat signatures quickly across open terrain or dense cover. Its rugged magnesium alloy housing keeps weight to a minimum while maximizing durability, and the high-contrast AMOLED display delivers sharp, smooth imagery in all weather conditions. With up to 8 hours of runtime from the quick-swap APS3 battery, dual-band Wi-Fi connectivity, onboard photo/video recording, and IPX7 waterproofing, the Axion XQ19 is an ideal thermal companion for hunters, land managers, and outdoor professionals who demand performance in a truly compact form.
Pulsar Axion XQ19 — Features & Specifications
Thermal Sensor & Imaging
| Feature |
Specification |
| Sensor Type |
Uncooled thermal sensor |
| Sensor Resolution |
384 × 288 |
| Pixel Pitch |
17 µm |
| NETD |
<18 mK |
| sNETD |
<25 mK |
| Frame Rate |
50 Hz |
| Detection Range |
Up to 820 yards |
Optics & Viewing
| Feature |
Specification |
| Objective Lens |
F19 / 1.0 |
| Magnification |
1.5× – 6× |
| Field of View |
19.5° |
| Eye Relief |
14 mm |
Display
| Feature |
Specification |
| Display Type |
AMOLED |
| Display Resolution |
640 × 400 |
| Image Characteristics |
High contrast, fast response, cold-weather optimized |
Image Optimization & Modes
| Feature |
Specification |
| User Mode |
Saves brightness & contrast settings |
| Sensitivity Amplification |
3 levels |
| Color Palettes |
8 (White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Red Monochrome, Sepia, Violet) |
Recording & Storage
| Feature |
Specification |
| Video Recording |
Yes |
| Photo Capture |
Yes |
| Video / Photo Resolution |
960 × 600 |
| File Formats |
.mp4 / .jpg |
| Internal Memory |
64 GB |
Connectivity
| Feature |
Specification |
| Wi-Fi |
Yes |
| Wireless Bands |
2.4 GHz / 5 GHz |
| App Compatibility |
Stream Vision 2 (iOS & Android) |
| Features via App |
Live streaming, file transfer, remote control, firmware updates |
Power System
| Feature |
Specification |
| Battery Type |
APS3 rechargeable battery |
| Battery Capacity |
3200 mAh |
| Runtime |
Up to 8 hours |
| External Power |
USB-C (5V) |
| Battery System |
Quick-change, removable |
Durability & Environmental
| Feature |
Specification |
| Housing Material |
Magnesium alloy |
| Waterproof Rating |
IPX7 (submersible to 1 m for 30 min) |
| Operating Temperature |
–13°F to +104°F |
| Heat Dissipation |
Metal housing reduces image noise |
Mounting & Compatibility
| Feature |
Specification |
| Mount Interface |
1/4" tripod socket |
| Supported Applications |
Stream Vision 2 |
Size & Weight
| Feature |
Specification |
| Dimensions |
5.3 × 1.5 × 2.8 in |
| Weight |
8.8 oz (with battery) |
