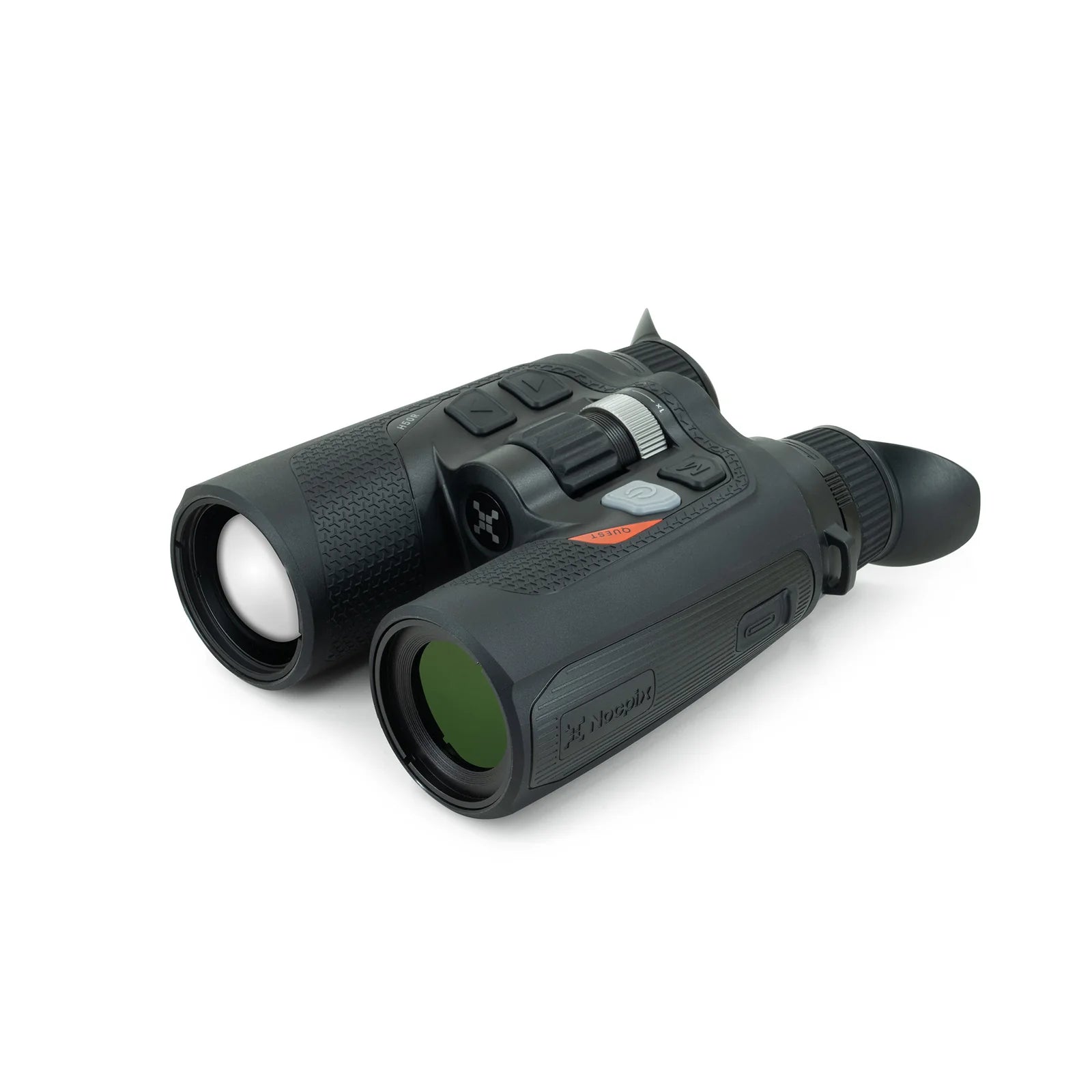

Nocpix Quest H50R LRF 640 50mm Thermal Binoculars

Name: Nocpix Quest H50R LRF 640 50mm Thermal Binoculars
Brand: NOCPIX
SKU: RPLNOCQUEST-H50R
Price: 3999.00 USD
Availability: InStock

$3,999.00

Quantity

RPLNOCQUEST-H50R

Share this product

Nocpix Quest H50R LRF 640 50mm Thermal Binoculars

All-new for 2025, the Nocpix QUEST H50R LRF brings premium thermal performance into a true binocular format—giving hunters a more natural, comfortable scanning experience using both eyes and both hands, just like traditional daylight glass. Built around a powerful 640×512, 12μm thermal sensor with ≤15mK sensitivity and a smooth 60 Hz refresh rate, the QUEST captures fine detail and subtle heat differences with impressive clarity. Nocpix’s Reality+ image processing pushes a vivid, high-definition picture to dual 1920×1200 AMOLED displays (full resolution per eyepiece), while the integrated 1,000-yard laser rangefinder adds real-time distance confirmation in either single-shot or continuous modes. With smart ergonomics like independent zoom/focus dials, onboard recording with 64GB storage, and a dual-power system that allows battery hot-swapping without shutting down, the QUEST H50R is built for long nights, fast decisions, and confident identification at range.

Nocpix QUEST H50R LRF 640 50mm — Features & Specifications

Thermal Sensor & Image Processing

Feature	Specification
Device Technology	Thermal Imaging
Sensor Core	Nocpix 640
Sensor Resolution	640 × 512
Pixel Size	12 μm
Frame Rate	60 Hz
Sensor Sensitivity (NETD)	≤ 15 mK
Image Processing	Reality+ Algorithm

Optics, Zoom & Field of View

Feature	Specification
Objective Lens	50 mm F/0.9
Native / Optical Magnification	4×
Digital Zoom	Up to 8×
Field of View	8.8° × 7.0°
Detection Range	Up to 2,850 yards
Focus Control	Manual focus (ergonomic dial)
Zoom Control	Continuous digital zoom (ergonomic dial)
Eye Relief	25 mm
Diopter Range	-5 to +5
Interpupillary Adjustment	Yes (independent, binocular style)

Display System

Feature	Specification
Display Type	Dual AMOLED
Display Resolution	Dual 1920 × 1200 (full resolution per eyepiece)
Per-Eye Adjustments	Diopter + position adjustment (each eyepiece)

Rangefinding

Feature	Specification
Rangefinder Type	Integrated Laser Rangefinder (LRF)
Max Range	1,000 yards
Modes	Single-fire + Continuous mode
Display Output	Range shown on-screen

Viewing & User Features

Feature	Specification
Color Palettes	White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Picture-in-Picture	Yes
Reticles	N/A

Recording, Storage & Connectivity

Feature	Specification
Onboard Recording	Video + Image
Internal Storage	64 GB
Wireless Connectivity	App-enabled image/video transfer
USB Connector	USB-C (Data/Power)
Start-Up Time	< 10 seconds (instant from standby)
Standby Mode	Yes

Power System

Feature	Specification
Internal Battery	USB-C rechargeable internal pack
Auxiliary Batteries	18650 style IRB-2 batteries ×2 (included)
Battery Swapping	Hot-swap capable (no shutdown)
Runtime	4+ hours per aux battery (listed)
External Power	USB-C external power supported

Physical Build & Ergonomics

Feature	Specification
Housing Material	Polymer w/ rubber overmold
Control System	Textured smooth-turning focus + zoom dials
Harness	Fully adjustable forward-opening binocular harness included
Weight	24.69 oz
Dimensions	6.91” × 5.43” × 2.60”
