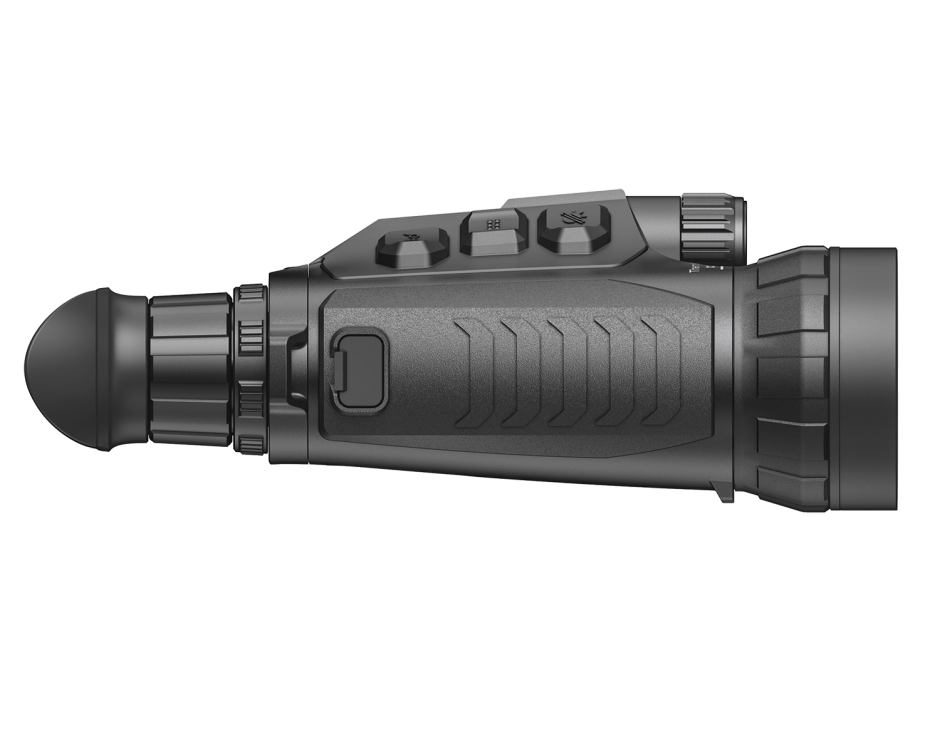

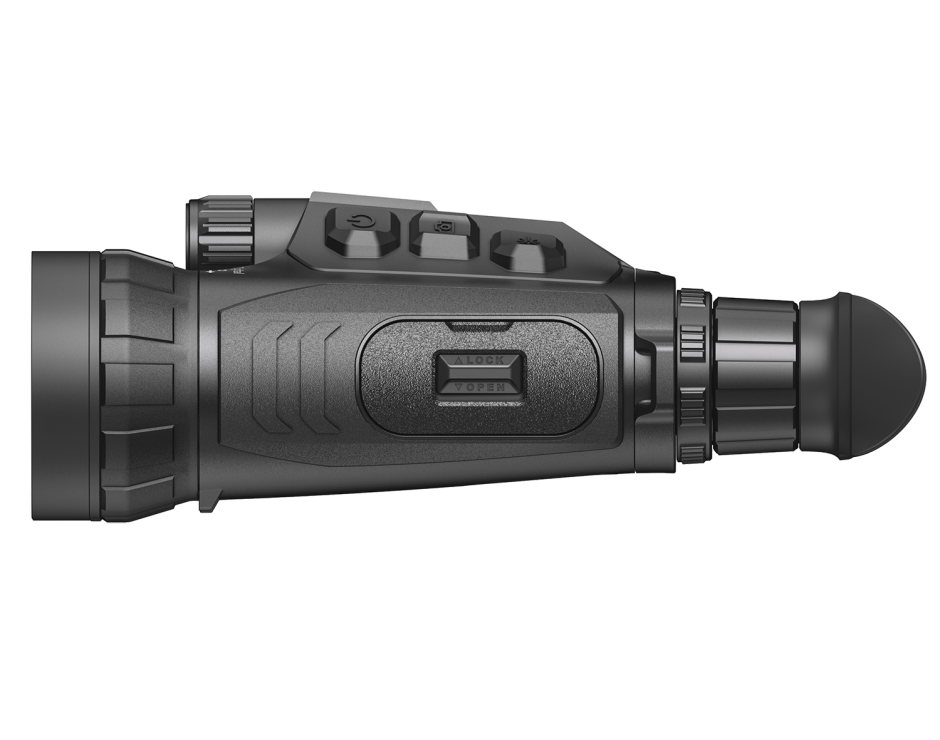

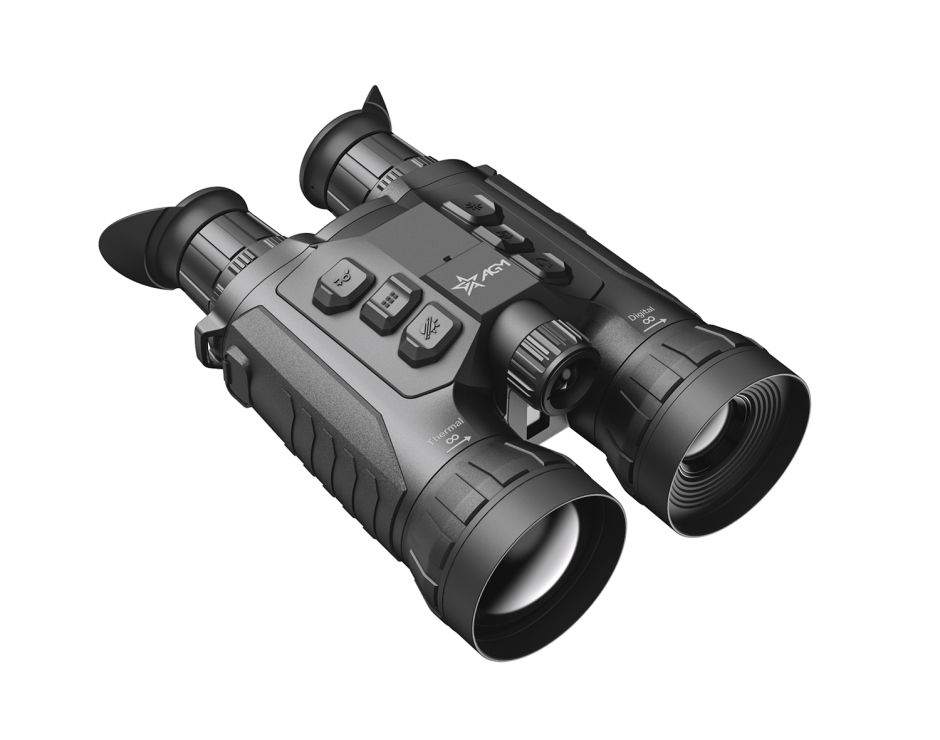

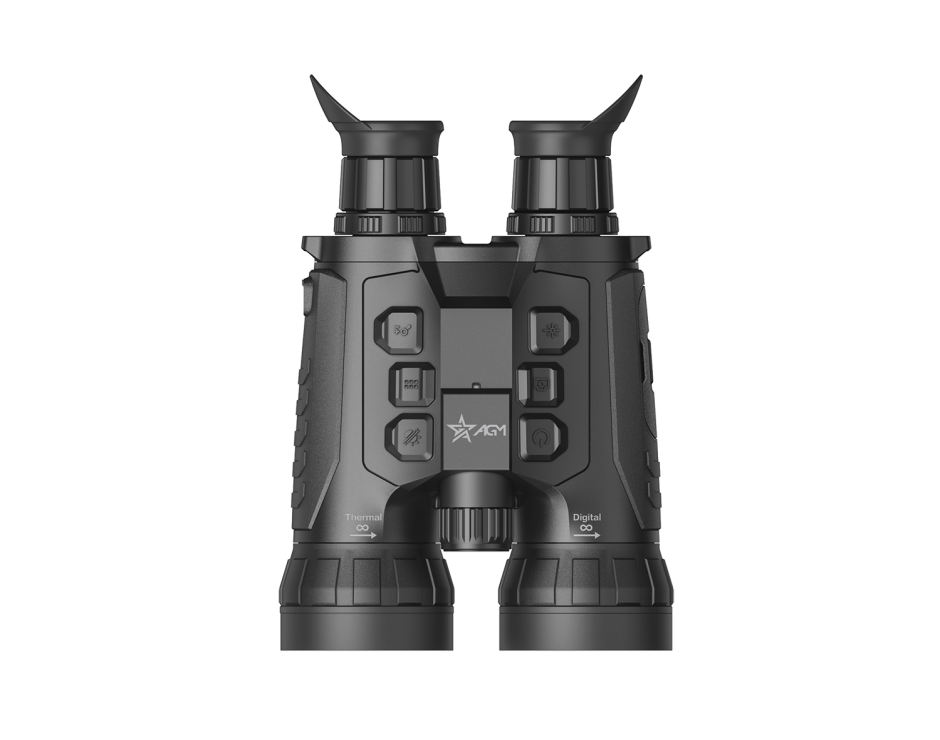

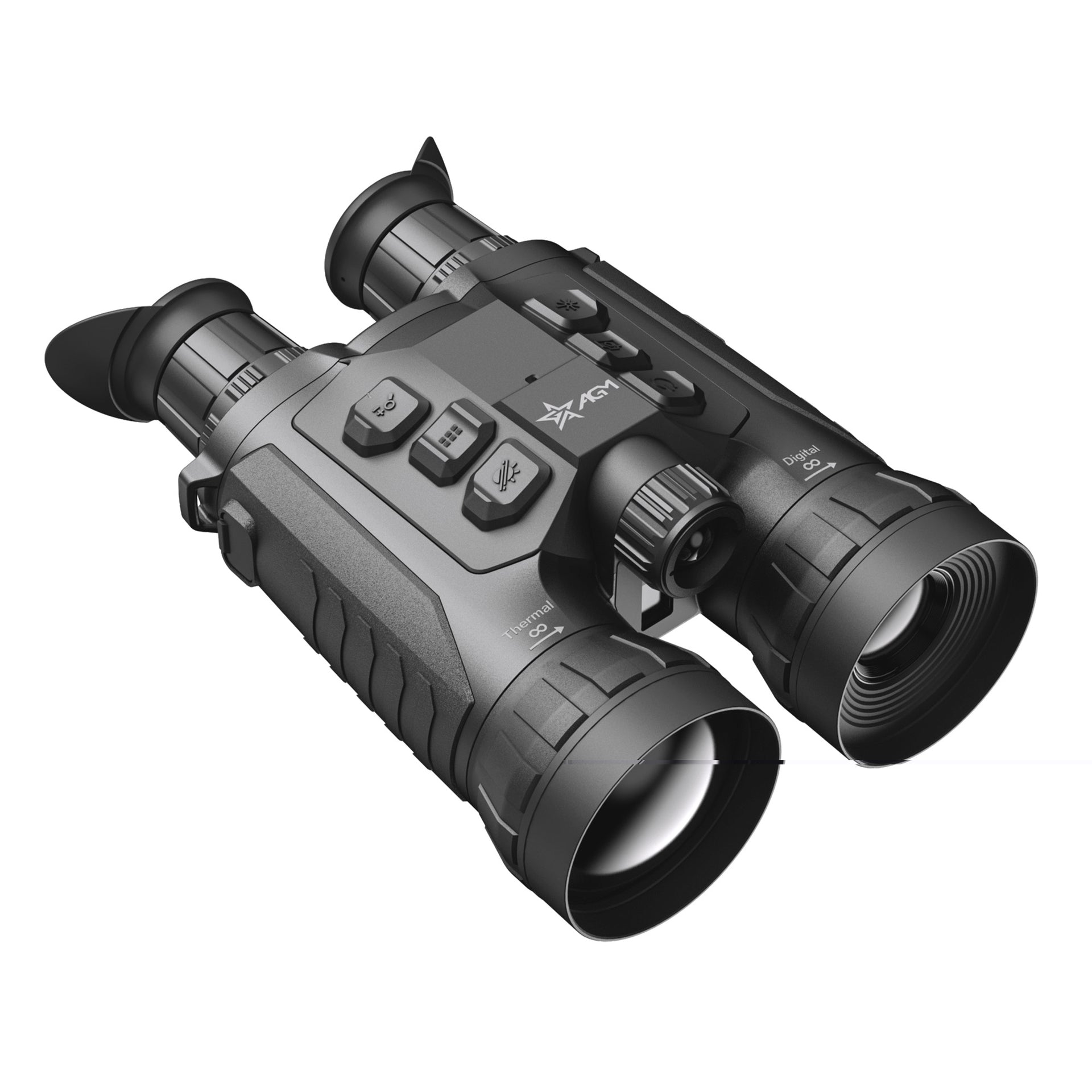

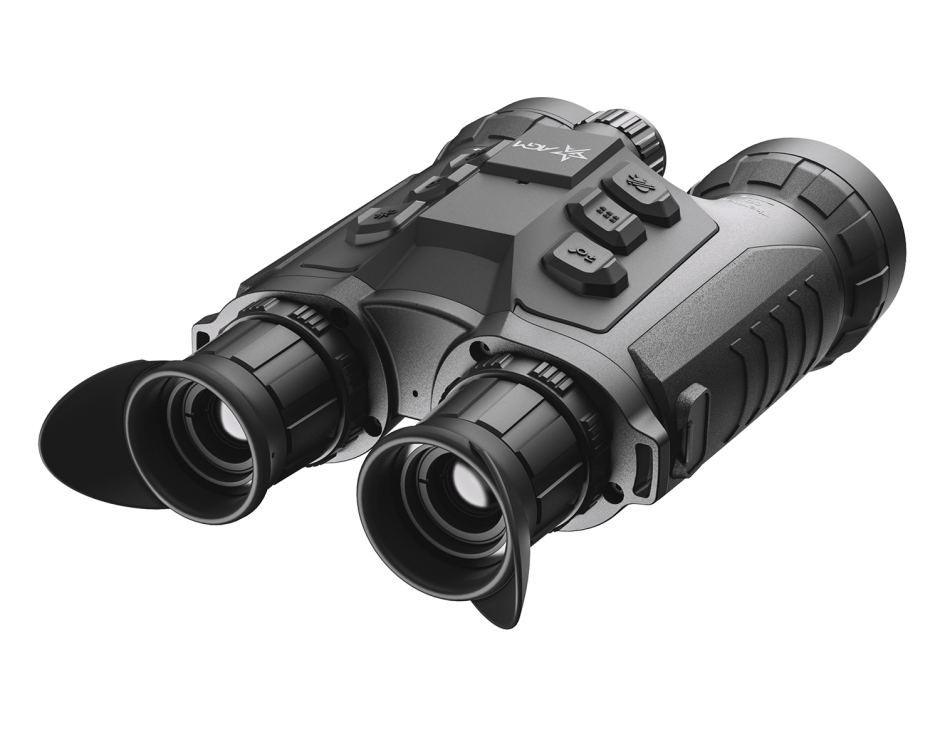

AGM ObservIR LRF 60-1280 Thermal & Digital Day & Night Binoculars

The AGM ObservIR LRF 60-1280 stands at the forefront of dual-spectrum optical innovation, combining a full-resolution thermal imaging engine with a true digital day/night channel to deliver unmatched detection, identification, and ranging capability in any lighting condition. Powered by a 12μm 1280×1024 thermal detector and a 3840×2160 ultra-low-light CMOS sensor, this advanced binocular system gives hunters, security professionals, and outdoor operators the ability to locate, classify, and confirm targets with absolute confidence. The built-in 1,000-meter laser rangefinder, long-range IR illuminator, GPS module, compass, and multiple viewing modes provide tactical-grade awareness, while its removable 18650 battery system ensures up to 7.5 hours of uninterrupted operation. With rugged IP67 construction, Wi-Fi streaming, 64GB onboard storage, and intelligent software enhancements like picture-in-picture and target hot tracking, the ObservIR LRF 60-1280 is truly one of the most advanced binocular platforms on the planet.

Key Features

Dual Optical System

• Thermal + Digital day/night fusion design

• Dedicated thermal channel for detection

• Dedicated digital channel for target recognition and confirmation

Thermal Performance

• 1280×1024 thermal resolution

• 12μm VOx uncooled focal plane array

• NETD <18mK for precise detail in low-contrast environments

• Refresh rate: 50Hz for smooth tracking

• 60mm F/1.0 thermal lens

• Thermal magnification: 2.5x – 20x (P-I-P supported)

• Thermal field of view: 14.6° × 8.8°

• Detection range: up to 3,100 meters for a 6 ft target

• Palettes: Black Hot, White Hot, Red Hot, Fusion

• Thermal scene modes: General, Compressed

• Hot-spot tracking for automatic target highlighting

Digital Day/Night Channel

• 3840×2160 ultra-low-light CMOS sensor

• Optical magnification: 5.5x – 22x

• 60mm F/2.2 optical lens

• Optical FOV: 7.3° × 4.1°

• Optical viewing range at night: 400m

• Modes: Day, Night, Auto

Laser Rangefinder & Orientation Tools

• Built-in 1,000m laser rangefinder ±1m accuracy

• Class 1 laser safety

• Digital magnetic compass for directional awareness

• Integrated GPS module for position tagging

Display & User Experience

• 1920×1080, 0.49-inch OLED display at 50 FPS

• Interpupillary adjustment: 60mm–74mm

• Diopter adjustment: –5 to +3

• Picture-in-picture mode (PIP)

• Image Boost 2.0 digital enhancement

• Auto screen-off / standby mode to preserve power

Recording, Storage & Connectivity

• 64GB internal EMMC storage

• Video and audio recording + snapshot capture

• Local album management

• Wi-Fi hotspot for app integration and mobile streaming

• USB-C external power & fast charging support

Power System

• Removable rechargeable NE-7255 Li-ion batteries (two included)

• Up to 7.5 hours runtime per charge

• Supports external 5V/9V USB Type-C power

Durability & Build

• IP67 waterproof/dustproof rated

• Operating temperature: –30°C to +55°C (–22°F to 131°F)

• Dimensions: 230 × 153 × 83 mm

• Weight: 0.89 kg / 1.97 lbs

• Rugged housing with rubber overmolding
