AGM RattlerV3 LRF 50-640 Thermal Scope

$4,895.00

$4,895.00 ~~$5,395.00~~

Quantity

RPLAGMRATT50-640-V3

Share this product

AGM RattlerV3 LRF 50-640 Thermal Scope

The AGM RattlerV3 LRF 50-640 is the most advanced evolution of the legendary Rattler line—built for hunters who demand true long-range capability, precision ranging, and elite-grade image clarity in a compact riflescope. It pairs a powerful 50mm Germanium objective with an industry-leading sub-15mK 12µm 640 sensor and a stunning 2560×2560 OLED display to deliver one of the sharpest 640-class thermal images available. The game-changer is AGM’s in-lens 1,000m laser rangefinder, seamlessly integrated for fast ranging without extra bulk, and matched with an on-board ballistic calculator for confident holds at distance. Add shutterless NUC, Image Boost 2.0, rugged controls designed for cold-weather gloves, and a deep customization suite including SAR, multiple palettes, profiles, and WiFi sharing—this is a premium predator and open-terrain hunting optic built to dominate the night.

AGM RattlerV3 LRF 50-640 — Features & Specifications

Thermal Imaging Core

Feature	Specification
Sensor Type	12µm VOx Uncooled Focal Plane Array
Sensor Resolution	640 × 512
Frame Rate	50 Hz
Thermal Sensitivity (NETD)	<15 mK (@25°C, F#=1.0)
Detection Range (6' object)	3540 m / 3870 yd (≈2.2 mi)

Optics & Magnification

Feature	Specification
Objective Lens	50 mm Germanium
Lens Aperture	F/1.0
Magnification Range	3.5× – 28×
Field of View (H×V)	8.7° × 7.0° (15.2 × 12.3 m @ 100 m)
Minimum Focus Distance	15 m
Eye Relief	45 mm
Exit Pupil	6 mm
Diopter Adjustment	-5 D to +5 D

Display & Viewing Experience

Feature	Specification
Display Type	OLED
Display Size	1.03"
Display Resolution	2560 × 2560
Picture-in-Picture (PiP)	Yes
Color Palettes	Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Brightness/Contrast	Adjustable (10 settings)
Tone Modes	Cold / Warm

Image Processing & Performance Tools

Feature	Specification
Image Boost	Image Boost 2.0
Zoom Pro	Yes
Shutterless Technology	Yes (shutterless NUC)
Flat Field Correction (FFC)	Semi-Auto, Manual
Defective Pixel Correction (DPC)	Yes
Hot Tracking	Yes
Hotspot Locator	Yes

Rangefinder & Ballistics

Feature	Specification
Laser Rangefinder	Integrated in-lens LRF
Max Range	1000 m
Min Range	10 m
Accuracy	±1 m
Laser Safety Class	Class 1
Laser Wavelength	905 nm
Ballistic Calculator	Yes
LRF Modes	Multiple ranging modes

Reticles, Zeroing & Shooting Profiles

Feature	Specification
Reticles	10 types
Reticle Colors	4 colors
Reticle Toggle	On/Off
Zeroing Profiles	5
Freeze Zeroing	Yes
On-board Pitch Scale	Yes

Recording, Storage & Connectivity

Feature	Specification
Video Recording	Yes (1280 × 1280)
Image Capture	Yes (1280 × 1280)
Audio Recording	Yes
Shot-Activated Recording (SAR)	Yes
Storage	Built-in EMMC (64 GB)
Local Album	Yes
Wi-Fi Hotspot	Yes
Wi-Fi Data Transmission	Yes

Power System

Feature	Specification
Battery Type	Replaceable & rechargeable Li-ion battery pack NE-4400
Included Batteries	2× NE-4400 battery packs
Battery Life	≥5.5 hours (@25°C, hotspot off)
Standby Mode	Yes
External Power	5V DC / 2A

Durability & Environmental

Feature	Specification
Protection Rating	IP67
Waterproof / Shockproof	Yes
Max Recoil Rating	1000 g / 0.4 ms
Operating Temperature	-30°C to +55°C (-22°F to 131°F)

Size & Weight

Feature	Specification
Dimensions	239 × 72 × 70 mm (9.4 × 2.8 × 2.8 in)
Weight (w/o battery)	0.77 kg / 1.7 lb

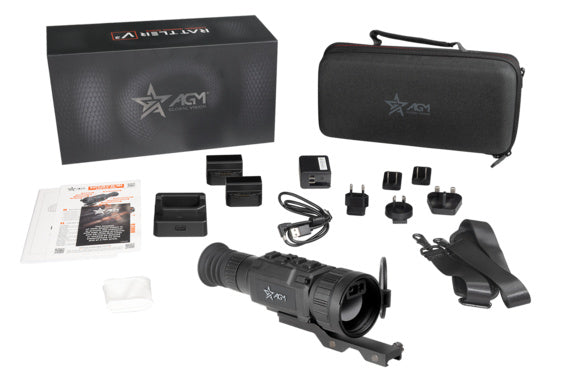

What’s Included

In the Box	Included
Scope	AGM RattlerV3 LRF 50-640
Mount	Standard Weaver mount (ADM QR mount not included)
Batteries	2× NE-4400 Li-ion battery packs
Charger	NE-4400 Charger
Accessories	USB Cable, Lens Cloth
Documentation	Manual, Quick Start Guide
Storage	Carrying Case
