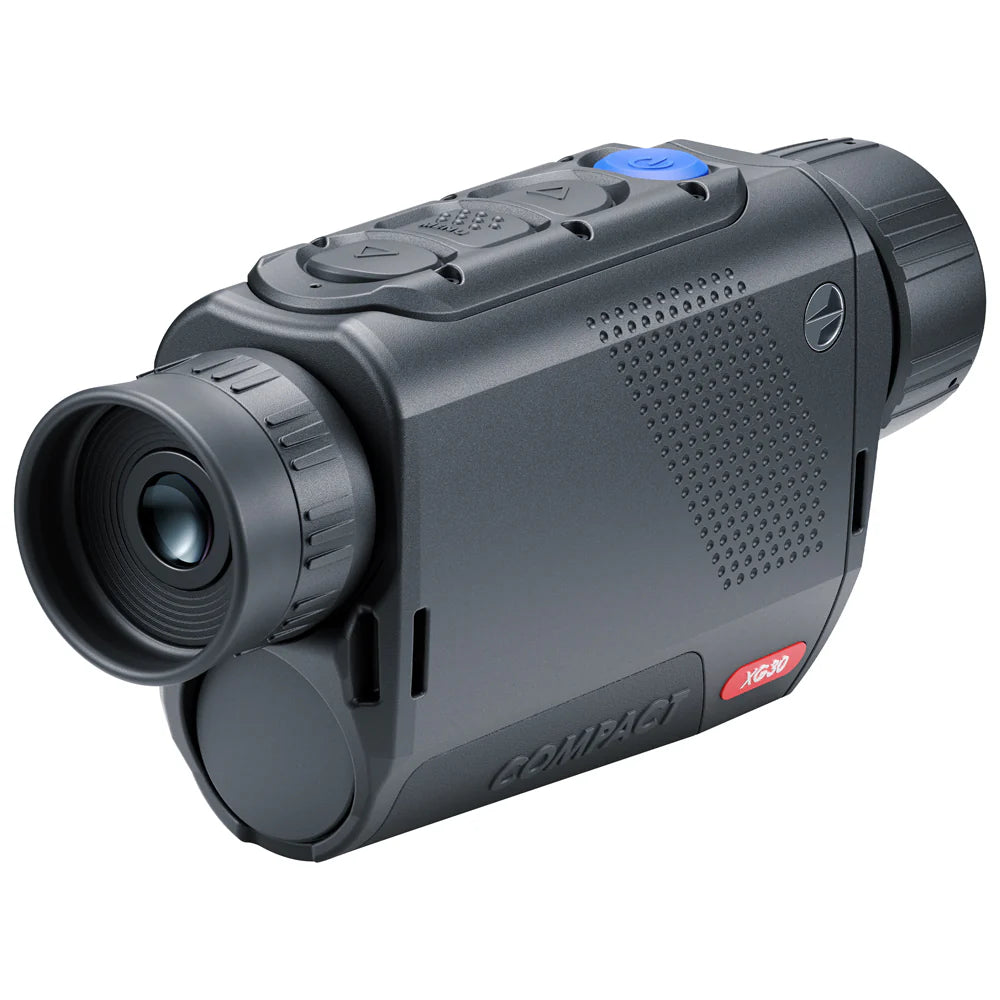

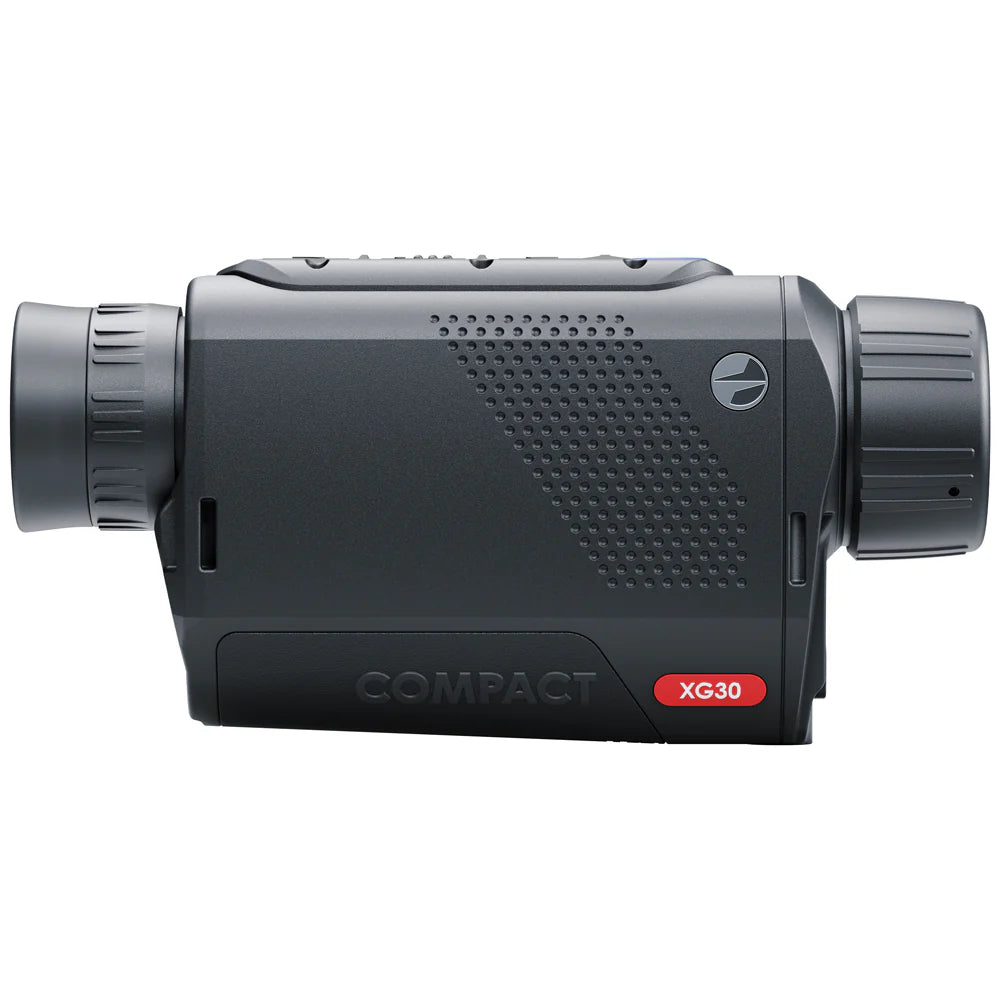

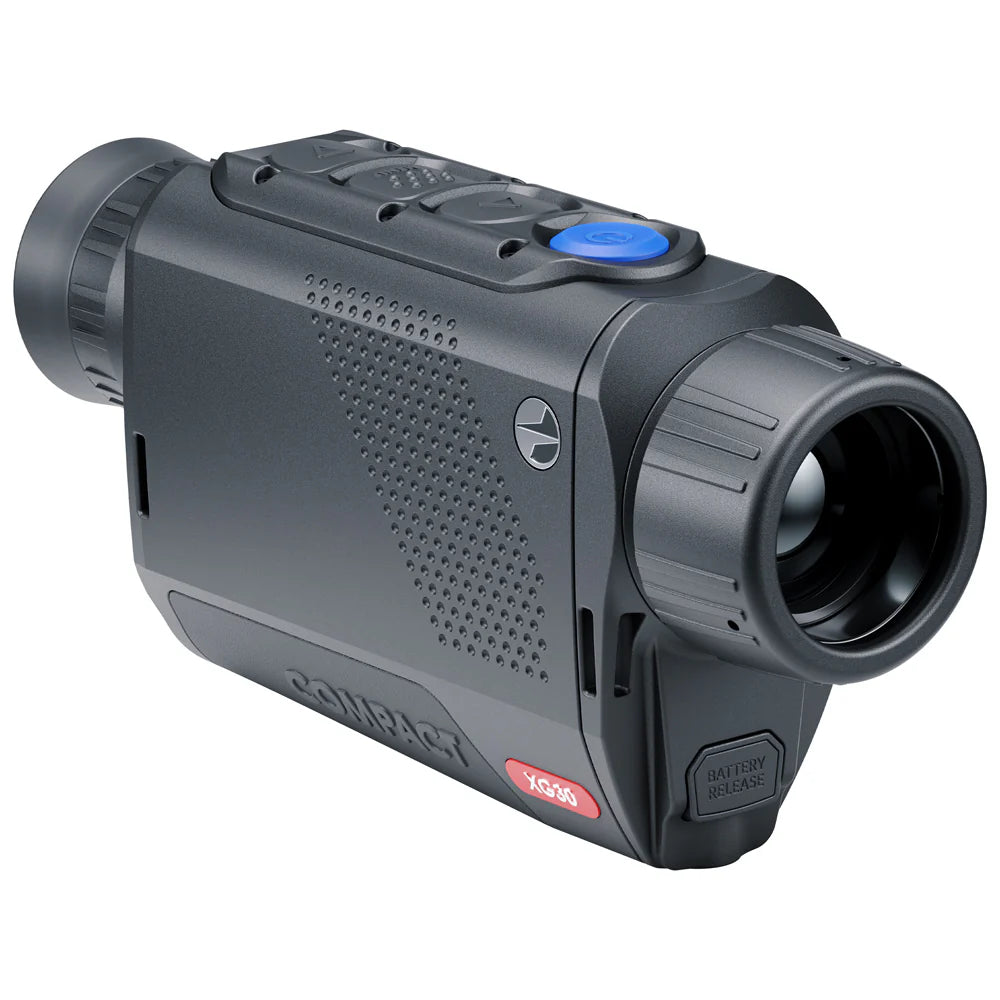

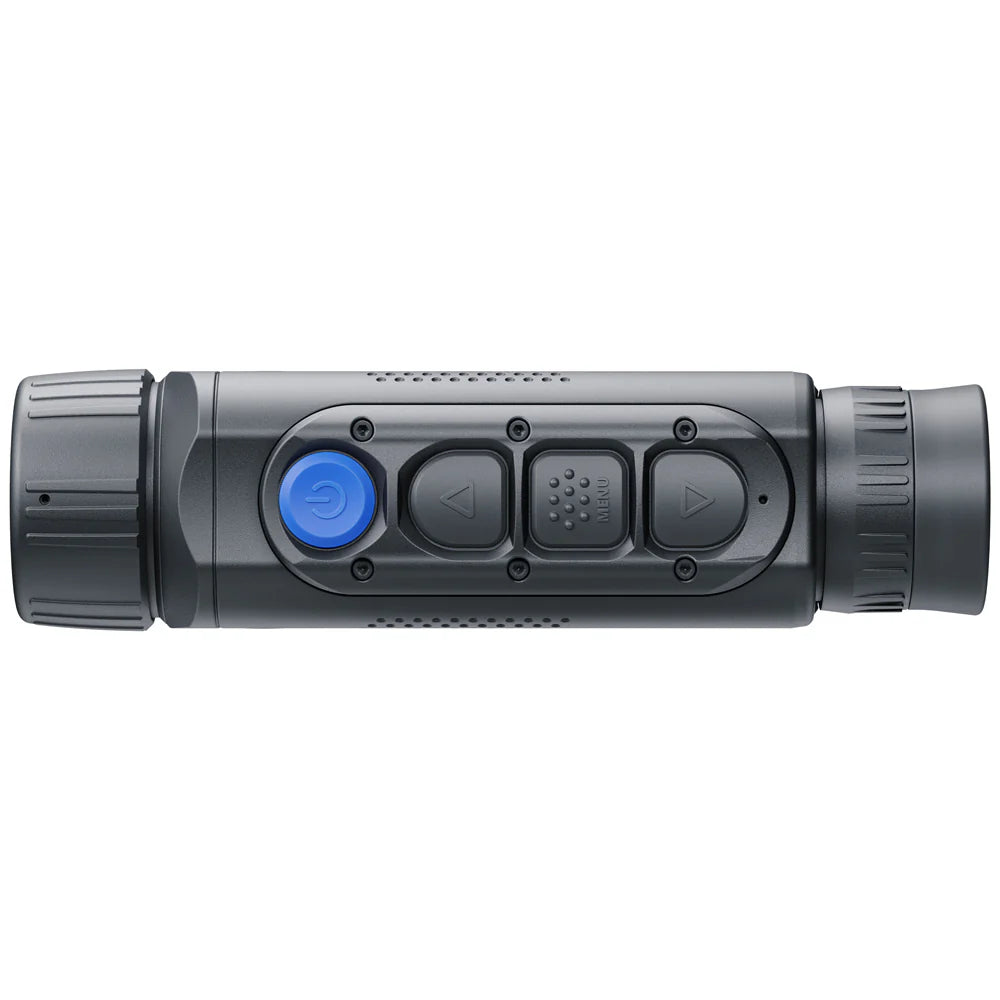

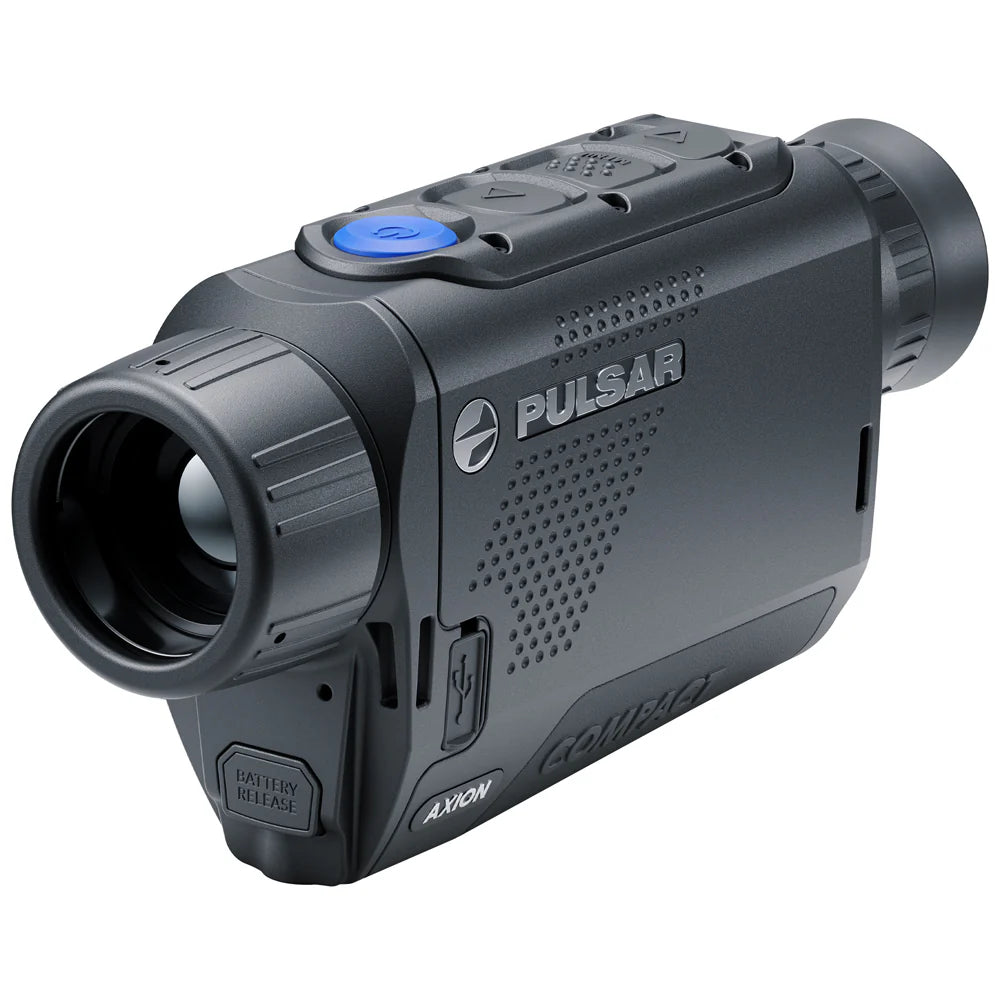

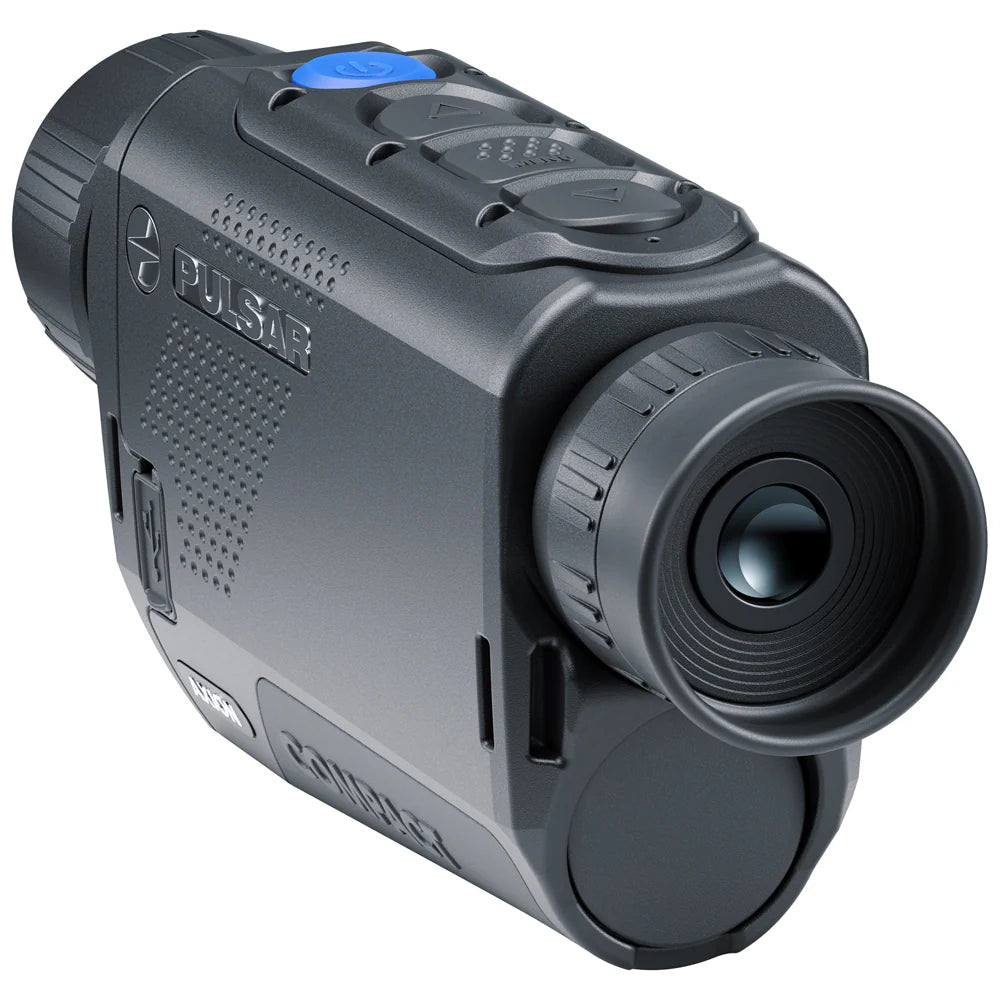

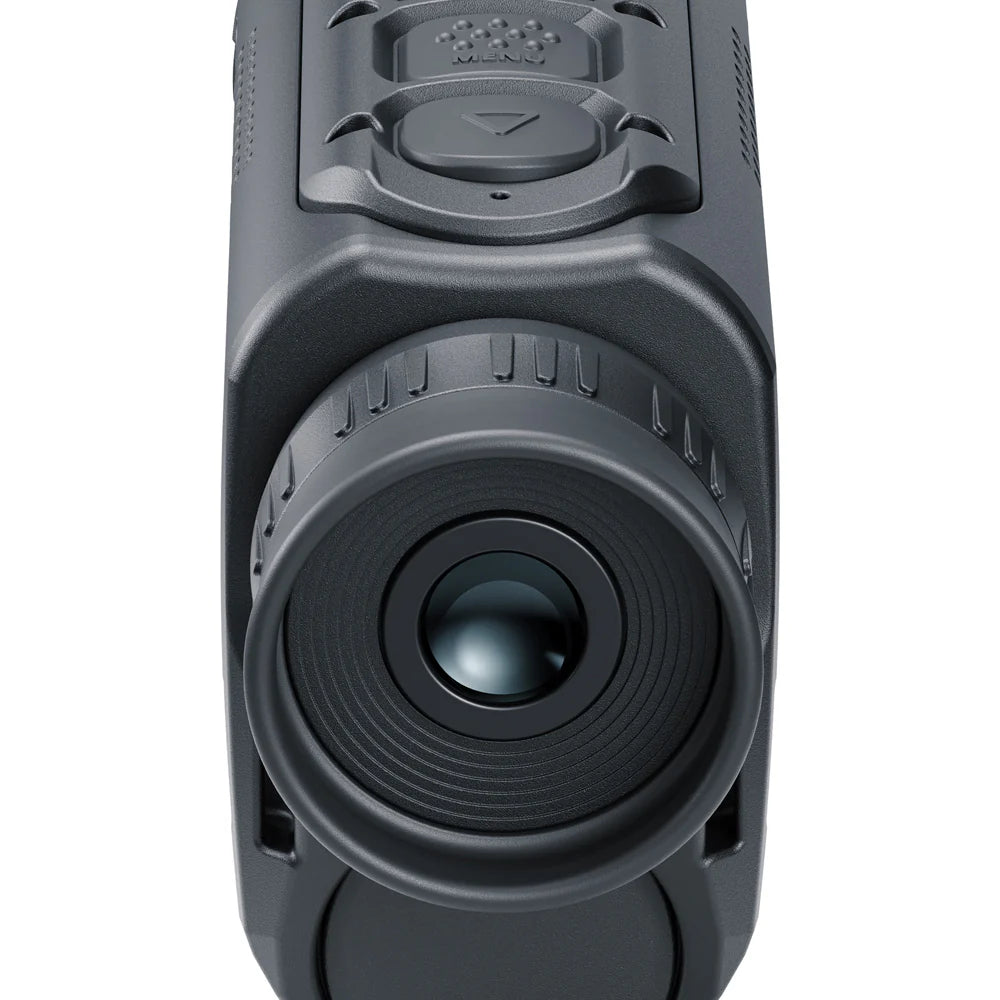

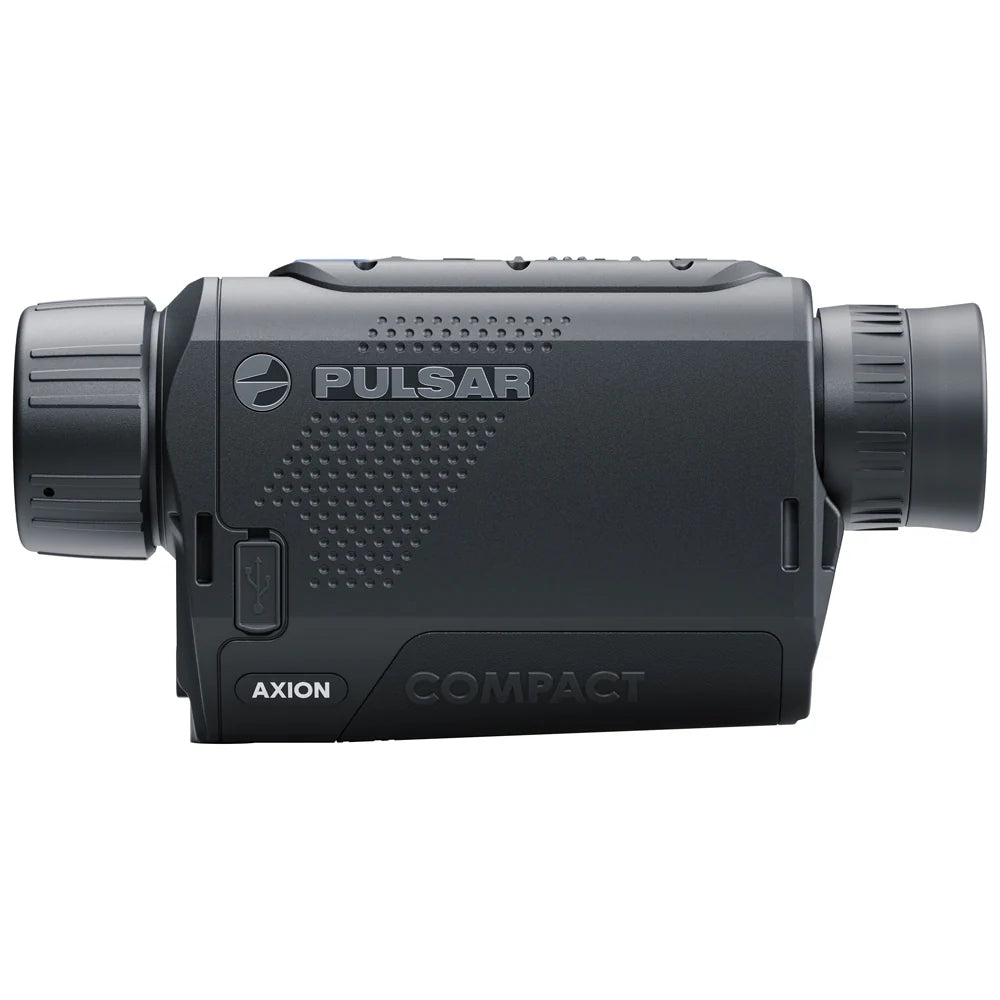

Pulsar Axion XG30 Thermal Monocular
The Pulsar Axion XG30 delivers high-resolution thermal performance in a truly pocket-sized design, making it an outstanding choice for hunters and outdoor professionals who need powerful detection without added bulk. Equipped with a European-made 640×480, 12-micron thermal sensor and a fast F30/1.2 lens, the Axion XG30 provides crisp image detail and confident target identification out to 1,400 yards. Its rugged magnesium alloy housing ensures durability in harsh environments, while the high-contrast AMOLED display produces smooth, vivid imagery in all weather conditions. With up to 7 hours of runtime on a quick-swap APS3 battery, dual-band Wi-Fi connectivity, onboard recording, and IPX7 waterproofing, the Axion XG30 is a compact yet capable thermal monocular built for serious nighttime scanning.
Pulsar Axion XG30 — Features & Specifications
Thermal Sensor & Imaging
| Feature |
Specification |
| Sensor Type |
Uncooled thermal sensor |
| Sensor Resolution |
640 × 480 |
| Pixel Pitch |
12 µm |
| NETD |
<40 mK |
| sNETD |
<25 mK |
| Frame Rate |
50 Hz |
| Detection Range |
Up to 1,400 yards |
Optics & Viewing
| Feature |
Specification |
| Objective Lens |
F30 / 1.2 |
| Magnification |
2× – 16× |
| Field of View |
14.6° |
| Eye Relief |
N/A |
Display
| Feature |
Specification |
| Display Type |
AMOLED |
| Display Resolution |
640 × 400 |
| Image Characteristics |
High contrast, fast response, cold-weather optimized |
Image Optimization & Modes
| Feature |
Specification |
| User Mode |
Saves brightness & contrast settings |
| Sensitivity Amplification |
3 levels |
| Color Palettes |
8 (White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Red Monochrome, Sepia, Violet) |
Recording & Storage
| Feature |
Specification |
| Video Recording |
Yes |
| Photo Capture |
Yes |
| Video / Photo Resolution |
960 × 600 |
| File Formats |
.mp4 / .jpg |
| Internal Memory |
64 GB |
Connectivity
| Feature |
Specification |
| Wi-Fi |
Yes |
| Wireless Bands |
2.4 GHz / 5 GHz |
| App Compatibility |
Stream Vision 2 (iOS & Android) |
| Features via App |
Live streaming, file transfer, remote control, firmware updates |
Power System
| Feature |
Specification |
| Battery Type |
APS3 rechargeable battery |
| Battery Capacity |
3200 mAh |
| Runtime |
Up to 7 hours |
| External Power |
USB-C (5V / 9V) |
| Battery System |
Quick-change, removable |
Durability & Environmental
| Feature |
Specification |
| Housing Material |
Magnesium alloy |
| Waterproof Rating |
IPX7 (submersible to 1 m for 30 min) |
| Operating Temperature |
–13°F to +104°F |
| Heat Dissipation |
Metal housing minimizes image noise |
Mounting & Compatibility
| Feature |
Specification |
| Mount Interface |
1/4" tripod socket |
| Supported Applications |
Stream Vision 2 |
Size & Weight
| Feature |
Specification |
| Dimensions |
5.6 × 1.6 × 2.7 in |
| Weight |
8.5 oz (with battery) |
