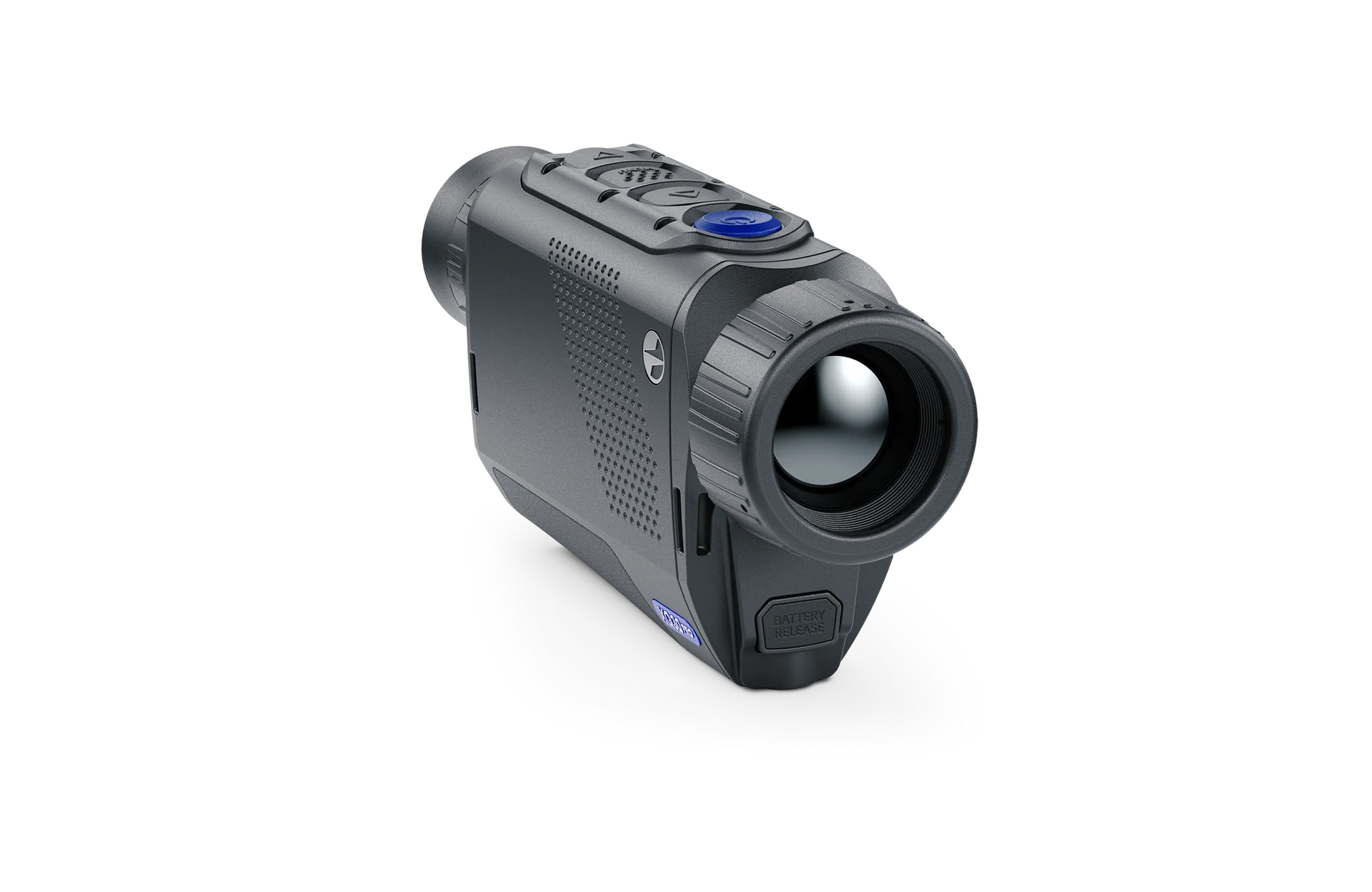

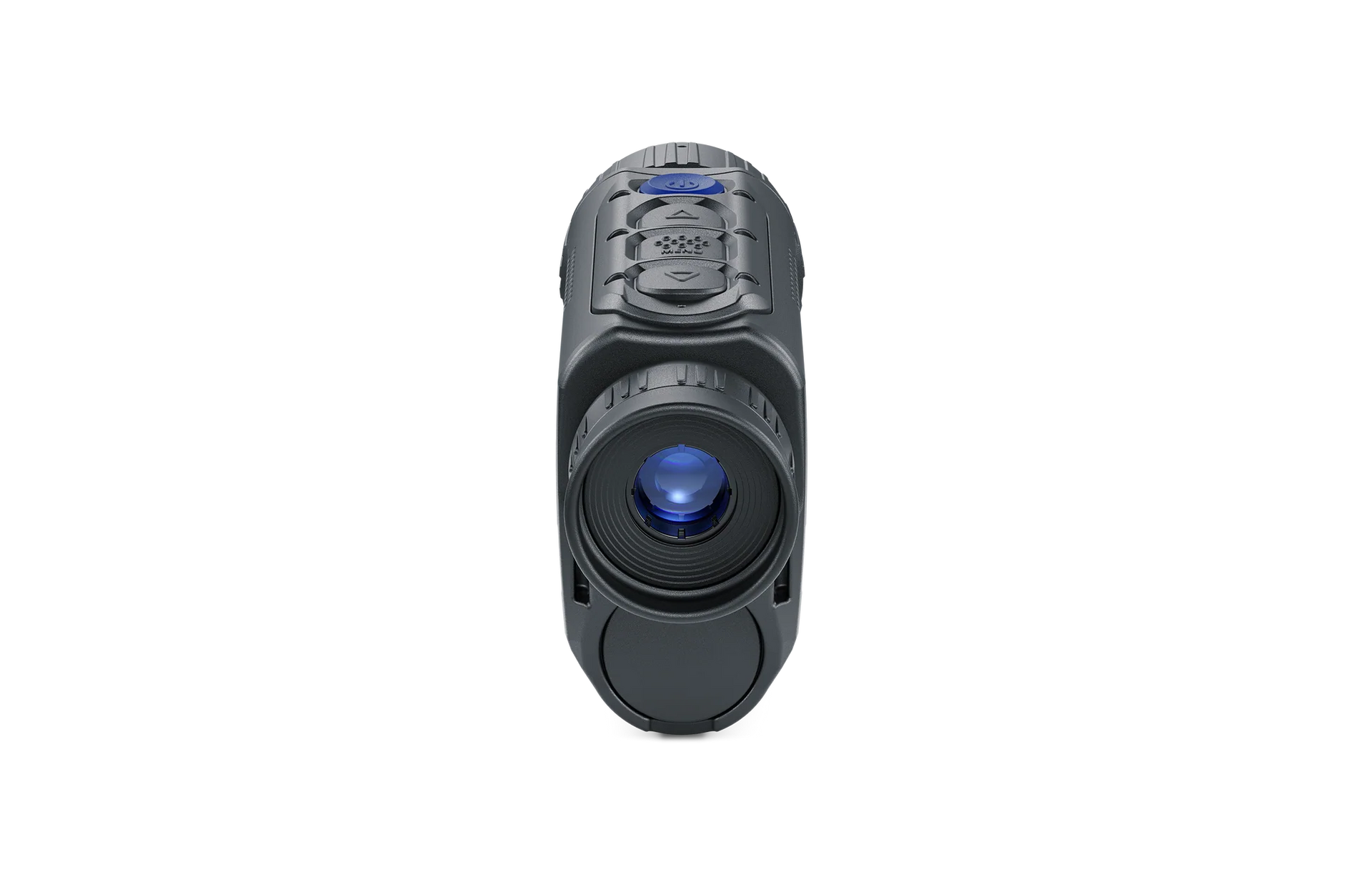

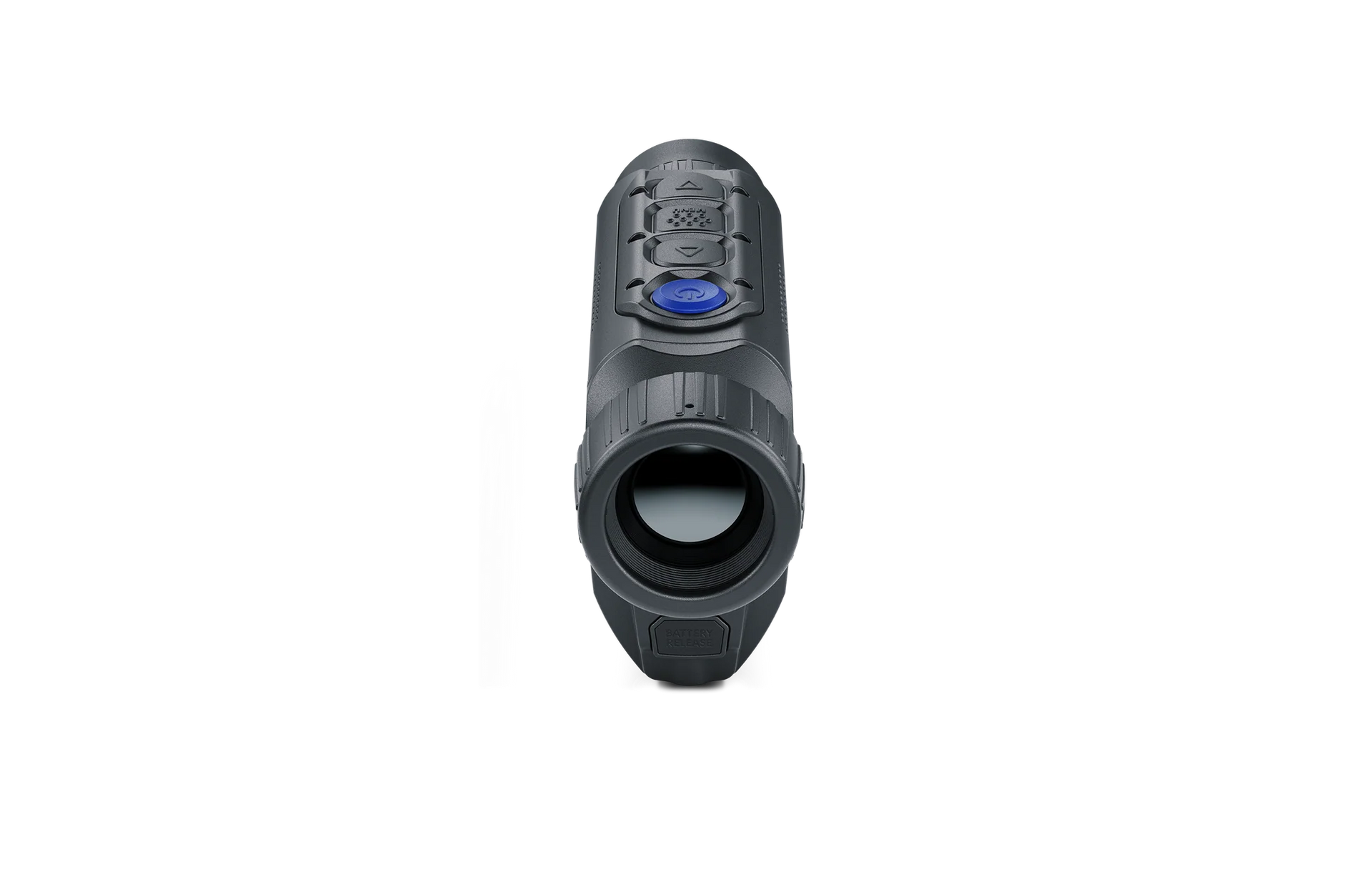

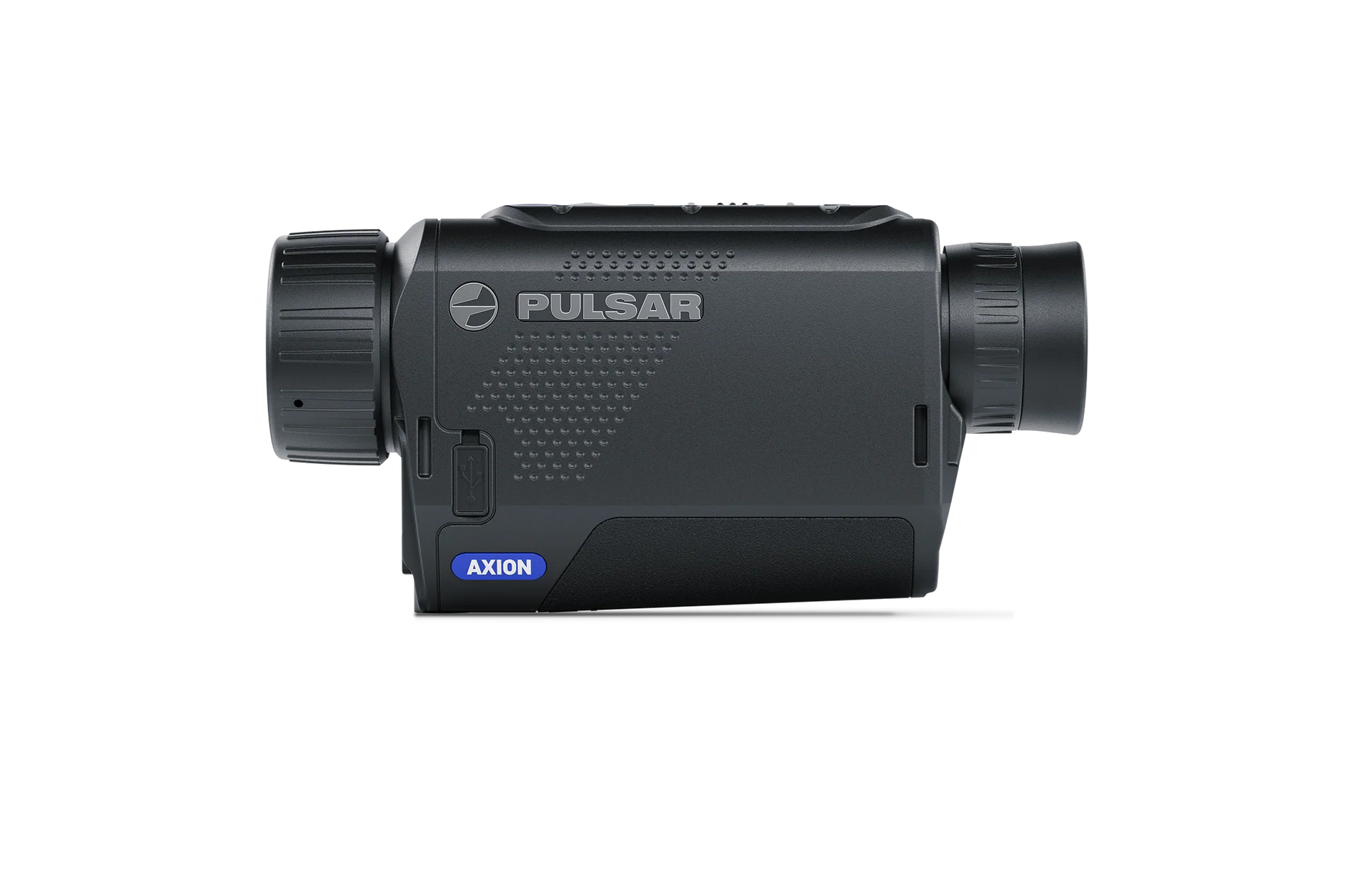

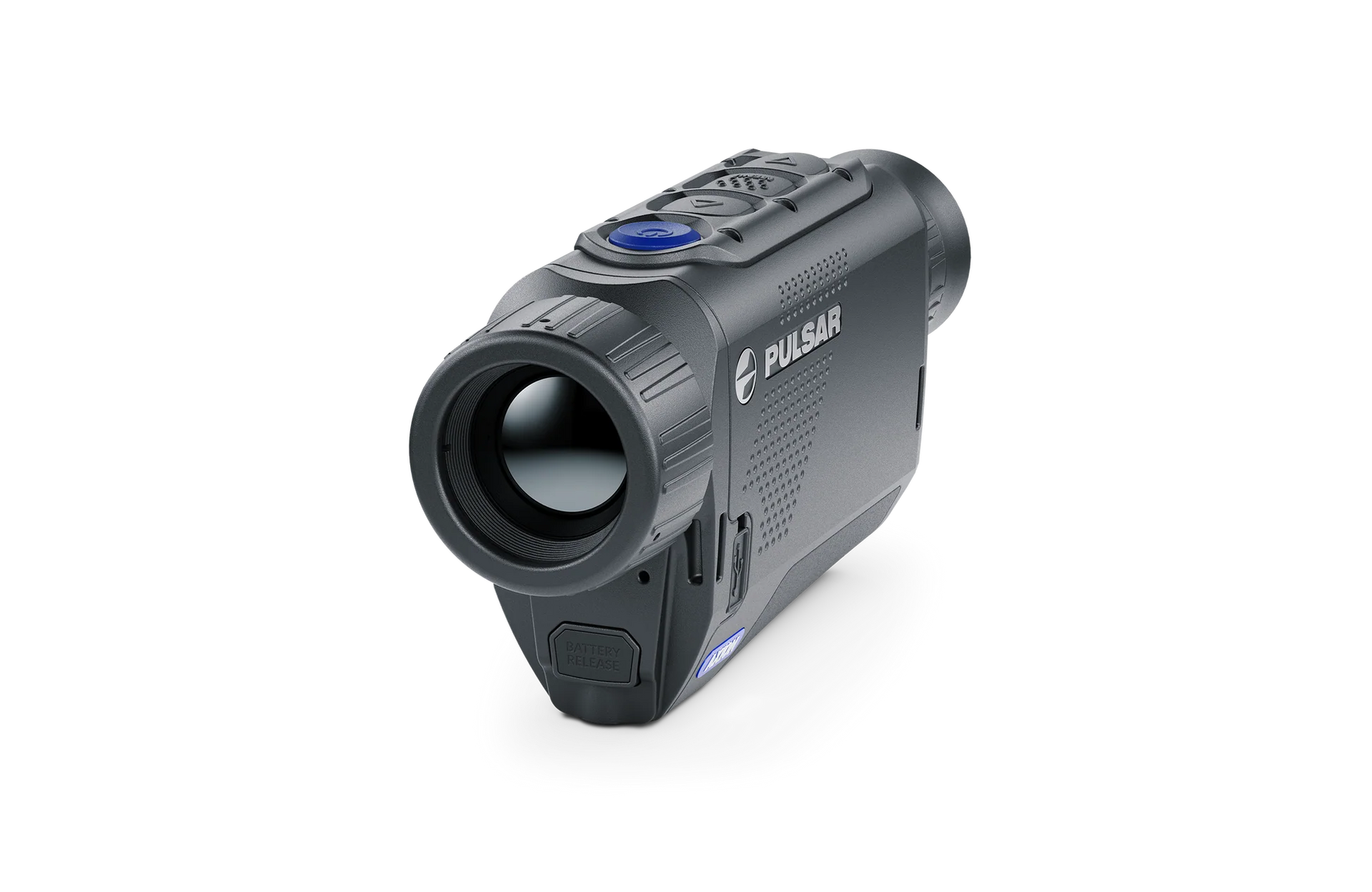

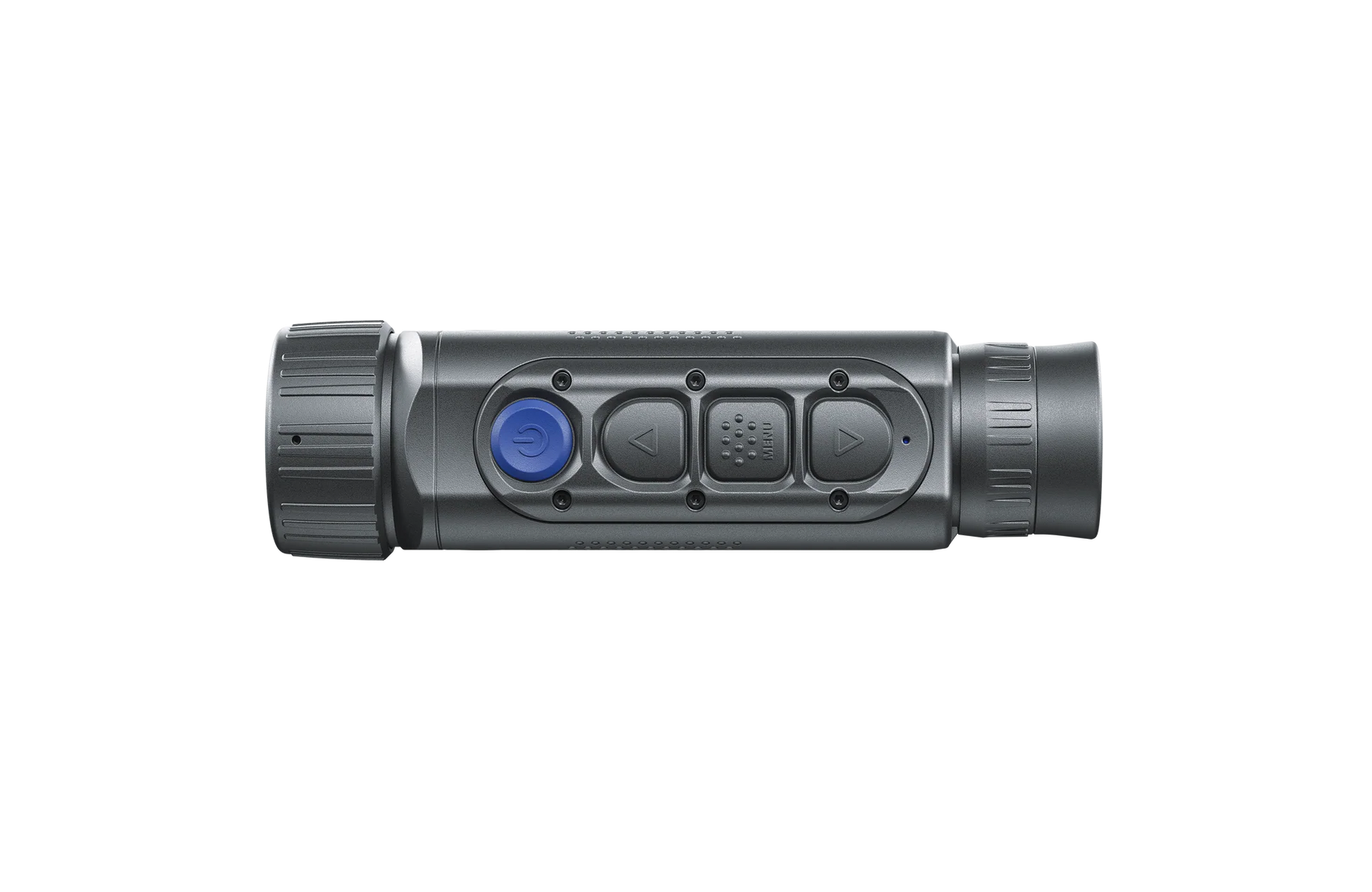

Pulsar Axion XQ30 Pro Thermal Monocular
The Pulsar Axion XQ30 Pro is a compact, high-performance thermal monocular designed for serious scanning, detection, and observation in demanding conditions. Built around a highly sensitive 384×288 thermal sensor with sNETD <20 mK and paired with a fast F35/1.0 germanium lens, the Axion XQ30 Pro delivers sharp detail and confident target recognition even in low-contrast environments such as fog, rain, or heavy humidity. Its rugged magnesium alloy housing keeps weight low while ensuring durability, and the high-contrast AMOLED display provides smooth, clear imagery in all temperatures. With up to 7–8 hours of runtime on a quick-change APS3 battery, dual-band Wi-Fi connectivity, onboard recording, and IPX7 waterproofing, the Axion XQ30 Pro is an ideal thermal monocular for hunters and outdoor professionals who want premium performance in a pocket-sized form.
Pulsar Axion XQ30 Pro — Features & Specifications
Thermal Sensor & Imaging
| Feature |
Specification |
| Sensor Type |
Uncooled thermal sensor |
| Sensor Resolution |
384 × 288 |
| Pixel Pitch |
17 µm |
| NETD |
<25 mK |
| sNETD |
<20 mK |
| Frame Rate |
50 Hz |
| Detection Range |
Up to 1,150 yards |
Optics & Viewing
| Feature |
Specification |
| Objective Lens |
Germanium F35 / 1.0 |
| Magnification |
2× – 8× |
| Field of View |
13.3° |
| Eye Relief |
14 mm |
Display
| Feature |
Specification |
| Display Type |
AMOLED |
| Display Resolution |
640 × 400 |
| Image Characteristics |
High contrast, fast response, cold-weather optimized |
Image Optimization & Modes
| Feature |
Specification |
| User Mode |
Saves brightness & contrast settings |
| Sensitivity Amplification |
3 levels |
| Image Processing |
Advanced smoothing and contrast adjustment |
| Color Palettes |
Multiple selectable palettes |
Recording & Storage
| Feature |
Specification |
| Video Recording |
Yes |
| Photo Capture |
Yes |
| Video / Photo Resolution |
640 × 400 |
| File Formats |
.mp4 / .jpg |
| Internal Memory |
16 GB |
Connectivity
| Feature |
Specification |
| Wi-Fi |
Yes |
| Wireless Bands |
2.4 GHz / 5 GHz |
| App Compatibility |
Stream Vision 2 (iOS & Android) |
| App Functions |
Live view, file transfer, remote control, firmware updates |
Power System
| Feature |
Specification |
| Battery Type |
APS3 rechargeable battery |
| Battery Capacity |
3200 mAh |
| Runtime |
Up to 7–8 hours |
| External Power |
USB-C (5V) |
| Battery System |
Quick-change, removable |
Durability & Environmental
| Feature |
Specification |
| Housing Material |
Magnesium alloy |
| Waterproof Rating |
IPX7 (submersible to 1 m for 30 min) |
| Operating Temperature |
–13°F to +122°F |
| Heat Management |
Metal housing reduces image noise |
Mounting & Compatibility
| Feature |
Specification |
| Mount Interface |
1/4" tripod socket |
| Supported Applications |
Stream Vision 2 |
Size & Weight
| Feature |
Specification |
| Dimensions |
144 × 41 × 69 mm |
| Weight |
0.31 kg (≈10.9 oz) |
